SURPASS HOBBY 2212 2216 2814 4250 5055 5065 Brushless Motors RC Airplane Wing

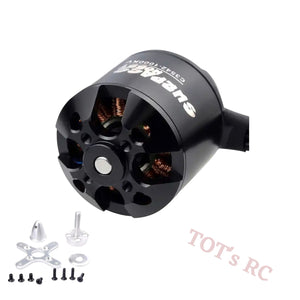

Surpass Hobby Brushless Motor Collection
Motor Specs C2822 2204 1400kv
(popular for SCX24 Crawler Brushless Conversion)
KV: 1400kv
Shaft Diameter: 3.0mm
Prop Collet Diameter: 5.0mm
Max Watts: 160
Voltage Range: 7-15v
Max Current: 13 Amps
Rotor Poles: 14
No Load Current: 0.4 A
Resistance: 0.307 ohms
Motor Size: 28mm*20mm
Stator Size: 22mm*04mm
Weight: 30 Grams
Propeller Inches: 7.5x3.5/8x4
Motor Specs C2826 2208 1350kv
KV: 1350kv
Shaft Diameter: 3.0mm
Prop Collet Diameter: 5.0mm
Max Watts: 240
Voltage Range: 7-12v
Max Current: 24 Amps
Rotor Poles: 14
No Load Current: 0.8 A
Resistance: 0.097 ohms
Motor Size: 28mm*24mm
Stator Size: 22mm*08mm
Weight: 45 Grams
Propeller Inches: 7x4/8x3.8
Motor Specs C2830-12 2212 1000kv
Compatible with FT B Style Motor and Crack Series Pro 55 gram Motor (13 to 16oz foamie)
KV: 1000kv Shaft Diameter 3.0 mm Prop Collet Diameter 5.0mm
Max Watts: 260
Voltage Range: 7-15v
Max Current: 21 Amps
Rotor Poles: 14
No Load Current: 0.9 A
Resistance: 0.152 ohms
Motor Size: 28mm*28mm
Stator Size: 22mm*12mm
Weight: 57 Grams
Propeller Inches: 9x4.5/10x6/10x5/10x4.5 SF
Motor Specs C2830-09 2212 1300kv
Compatible with FT B+ Style Motor
KV: 1300kv Shaft Diameter 3.0 mm Prop Collet Diameter 5.0mm
Max Watts: 300
Voltage Range: 7-12v
Max Current: 25 Amps
Rotor Poles: 14
No Load Current: 1.2 A
Resistance: 0.085 ohms
Motor Size: 28mm*28mm
Stator Size: 22mm*12mm
Weight: 57 Grams
Propeller Inches: 9x6/10x6/10x5
Motor Specs C2834-08 2216 1120kv
Compatible with FT C Style Motor and Crack Series Pro 72 gram Motor (22-32oz foamie)
KV: 1120kv Shaft Diameter 4.0 mm Prop Collet Diameter 5mm
Max Watts: 380
Voltage Range: 7-15v
Max Current: 26 Amps
Rotor Poles: 14
No Load Current: 1.2 A
Resistance: 0.068 ohms
Motor Size: 28mm*32mm
Stator Size: 22mm*16mm
Weight: 67 Grams
Propeller Inches: 9x6/10x4.5 SF/11x5.5
Motor Specs C3536 2814 1050kv
Compatible with FT C Style Motor and Crack Series Pro 100 gram Motor (42-48" foamie)
KV: 1050kv Shaft Diameter 4.0 mm Prop Collet Diameter 5.5mm
Max Watts: 500
Voltage Range: 7-15v
Max Current: 38 Amps
Rotor Poles: 14
No Load Current: 1.5A
Resistance: 0.055 ohms
Motor Size: 35mm*35mm
Stator Size: 28mm*14mm
Weight: 109 Grams
Propeller Inches: 9x5.5/10x4.7/10x5/10x6/11x5
Motor Specs C3536 2814 1300kv
Compatible with FT C+ Style Motor
KV: 1300kv Shaft Diameter 4.0 mm Prop Collet Diameter 5.5mm
Max Watts: 680
Voltage Range: 7-15v
Max Current: 50 Amps
Rotor Poles: 14
No Load Current: 1.8A
Resistance: 0.038 ohms
Motor Size: 35mm*35mm
Stator Size: 28mm*14mm
Weight: 109 Grams
Propeller Inches: 9x4.5/10x4.7/9x5
Motor Specs C3542 2820 1000kv
KV: 1000kv
Max Watts: 750
Shaft Diameter: 4.0mm
Prop Collet Diameter: 5.5mm
Voltage Range: 7-15v
Max Current: 65 Amps
Rotor Poles: 14
No Load Current: 2.0A
Resistance: 0.039 ohms
Motor Size: 35mm*41mm
Stator Size: 28mm*20mm
Weight: 132 Grams
Propeller Inches: 10x6/12x6.5/13x8
Motor Specs C4250 3520 800kv Equivalent Rimfire .32
KV: 800kv Shaft Diameter 5.0 mm Prop Collet Diameter 7.0mm
Max Watts: 1250
Voltage Range: 15-20v
Max Current: 62 Amps
Rotor Poles: 14
No Load Current: 1.5A
Resistance: 0.0212 ohms
Motor Size: 42mm*50mm
Stator Size: 35mm*20mm
Weight: 205 Grams
Propeller Inches: 13x10/14x7/14x10
Motor Specs C5055-08 4120 570kv
KV: 570kv Shaft Diameter 6.0 mm Prop Collet Diameter 9.0mm
Max Watts: 1550
Voltage Range: 15-24v
Max Current: 65 Amps
Rotor Poles: 14
No Load Current: 1.5A
Resistance: 0.0255 ohms
Motor Size: 50mm*55mm
Stator Size: 41mm*20mm
Weight: 275 Grams
Propeller Inches: 14x8/15x8/17x9
Motor Specs C5065-07 4130 435kv
Compatible with FT Monster Size Motor
KV: 435kv Shaft Diameter 6.0 mm Prop Collet Diameter 9.0mm
Max Watts: 1750
Voltage Range: 15-24v
Max Current: 73 Amps
Rotor Poles: 14
No Load Current: 1.6A
Resistance: 0.0234 ohms
Motor Size: 50mm*65mm
Stator Size: 41mm*30mm
Weight: 375 Grams
Propeller Inches: 16x8/16x10/17x9
Customer Test Data for 5065:
3 Blade 14x9 Prop Draws 999 watts about 45-50 amps
12x9 Prop Draws 550 watts
These Motors are great for scratch building airplanes. For B , B+ Pack , C or C+ Pack substitutes, EPP Profile and other RC Planes.
Any Questions Please Ask
If you need even more power, the largest Surpass Motor is available here.
