Mini RC Plane Power KIT w/Motor A2208/30A ESC/4x Servo/2x Prop
Each Scratch Build Kit Now Comes with 2 Props
1 CCW 6*4 and 1 CW 6*4
Now available 2208 1800kv Brushless Motor. Longer Flight Times,
a little slower speed... great fun in the air. Great for Mini
Plane Scratch Builds
Also..... Don't Forget your Wire Extension Kits
Use this kit for your electronics install in you smaller mini builds or FPV wings. These kits have a variety of possible applications. I currently use them in my Wings,
Mini Corsair and Mini Mustang, but you can use these in most all small builds.
Great on 2s Lipo, Speed Demon on 3s Lipo. Prop Size included is a 6x4 Gemfan
Prop. You can use 4 to 6 inch props with this motor. ESC is fully programable
and can use 2-3s Lipo, come in Deans or XT 60 Connectors.
here is some sample video of kit in action
If your New to the Hobby, I also we have MG90s Metal Gear Servos,
great for withstanding crashes or an accidental bashing. The MG90s 14 grams
are my go to for most of my budget builds..... little heavier but much more durable. Full Specs are listed below.
F Pack Equivalent upgraded

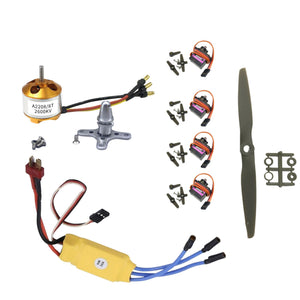

Deluxe Scratch Build Power Kit
you get:
Full Quality Inspection and Bench Testing of all gear before shipping, so
that it is 100% operational and guaranteed no DOA.
1x 30 AMP ESC XT60 or Deans Connector your choice. It will come Pre-soldered
with 3.5 mm Banana Plugs Has a 5v2a BEC Built In
1x 2208 2600kV 8T Brushless Motor, this is a great motor for Mini builds, FPV Wings
1x High Quality GEMFAN 6x4 Prop with 6mm apeture and weighs in at 3 grams
4x MG90s Metal Gear Servos, for durability and long lasting quality. Also
great for Helicopters for a durable swash plate.
We are a small family business Operation located in Phoenix Arizona.
We service USA, Canada and Puerto Rico.
You can use this pack in your scratch build Foamies and Foamboard planes,
F Pack Similar with a little more punch, Use in Flitetest scratch build powerpods,
can also use for RC Boats (forward Only), RC Cars (forward Only), RC Motorcycles,
RC Sailplanes, RC AirBoats, RC Paramotor
MG90 Servo Specs
Can handle Voltage from 4.8v to 6.0v
Torque @ 4.8V is 2.2kg/cm
Torque @ 6v is 2.5kg/cm
90° Degrees MG90S Metal Gear Servo
Features:
1. For Boat Car/ Plane/Helicopter like Trex 450 or clone Gartt 450, KDS 450, ALZRC 450, HK450 Blade 300, Helicopter and more /Robot
2. Dimensions: 23 x 12.2 x 29mm
3. Weight:. 20g
4. Operating Speed : (4.8V no load): 0.11sec / 60 degrees
(6.0V no load): 0.10sec / 60 degrees
5. Stall Torque (4.8V): 2.2 kg/cm
6. Stall Torque (6.0V): 2.5 kg/cm
7. Temperature Range: - 30 to + 60 degree
8. Dead Band Width: 10us
9. Connector Wire Length 150mm
10. Interface Specifications: JR / FP General
11. Accessories: Multi-arm, fixing screws
12. Scope: Helicopters KT, fluttering, gliding, small robots,etc.
13. Recommend Model: Mini Car /Ship / Helicopter & Airplane/ Fixed Wing / FPV Drone/ FliteTest A Pack / Flite Test F Pack substitutes
30 AMP ESC Specs
Material: Plastic, Metal
Color: As Picture Shown
Weight: 34g
Size: approx. 55*25mm/2.2*1 inch
Type: RC Parts and Accessories
Firmware: Hobbywing
Power Input: 7-12.6V(2-3S Li-Poly, or 5-12S Ni-MH Ni-MH/Ni-Cd)
BEC: 2A
Continuous Current: 30A(40A for 10 seconds)
