Hobbywing Skywalker 20A 30A 40A 50A 60A 80A 100A ESC 2-6s w/UBEC
Hobbywing Skywalker ESC Collection
12 AMP
- Model: Skywalker-12A
- Continuous Current: 12A
- Burst Current (>10s): 15A
- BEC Mode: Linear
- BEC Output: 5V2A
- BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
- Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
- Net Weight: 10g
- Dimension (L x W x H): 38 x 18 x 7mm
- Cable length: 20cm
- Package size: 12.5 * 11 * 2.5cm

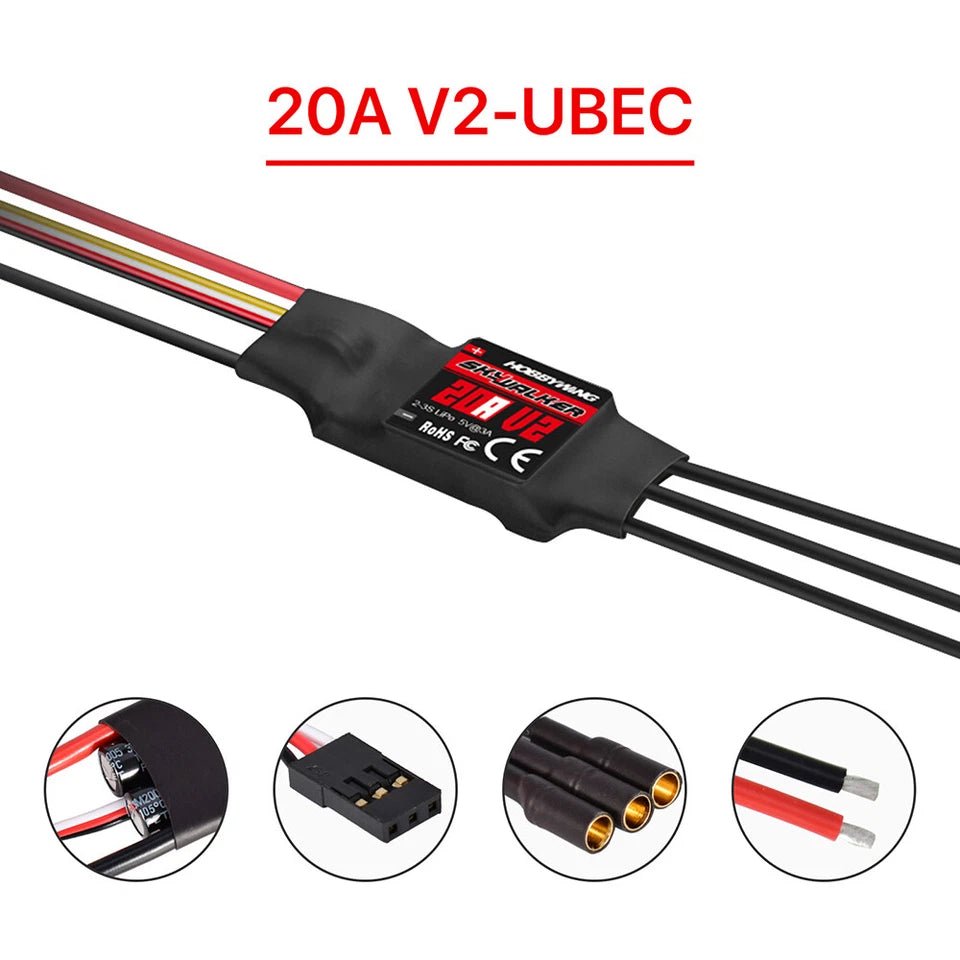

20 AMP
- Model: Skywalker-20A
- Continuous Current: 20A
- Burst Current (>10s): 25A
- BEC Mode: Linear
- BEC Output: 5V2A
- BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
- Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
- Net Weight: 19g
- Dimension (L x W x H): 42 x 25 x 8mm
- Cable length: 25cm
- Package size: 12.5 * 11 * 2.5cm

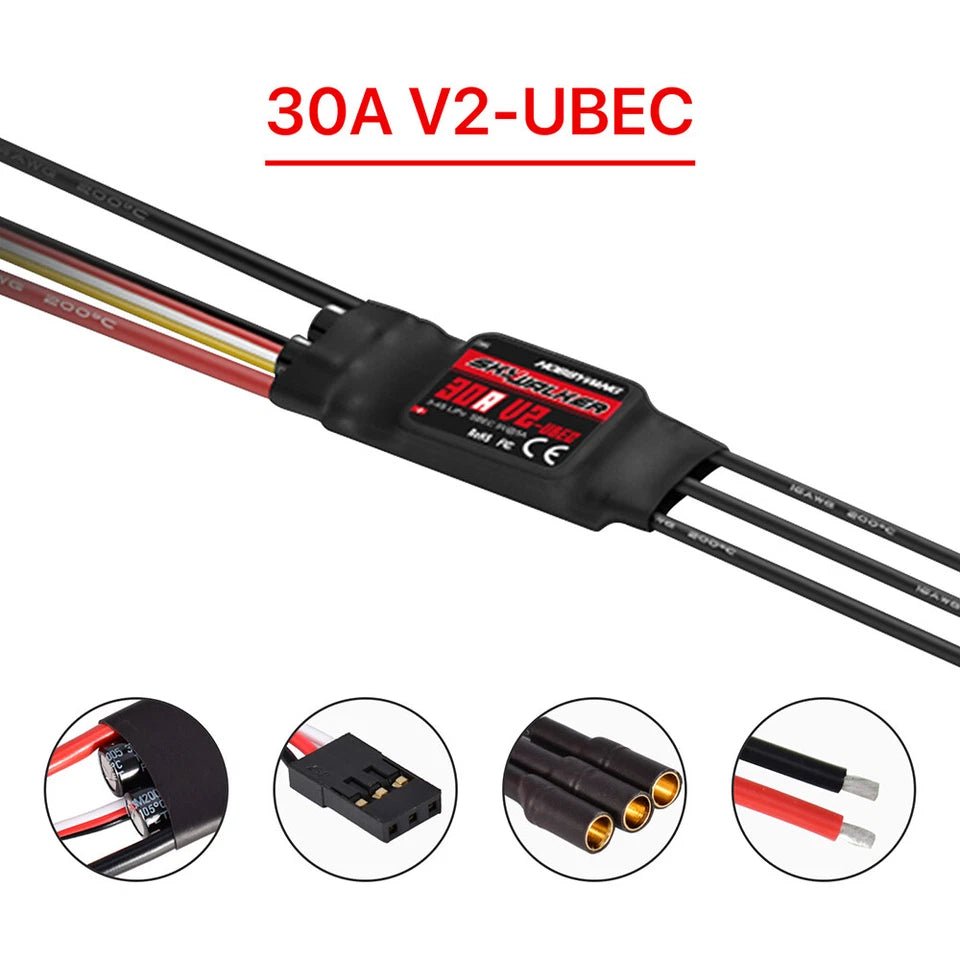

30 AMP
- Constant Current: 30A
- Peak Current:40A(10s)
- Voltage: 2-3S lixx
- BEC: Yes
- BEC Output: 5V/2A
- Color: black
- Programmable:Yes
- Size: 70*25*8mm (not including cable length)
- Net Weight:38g

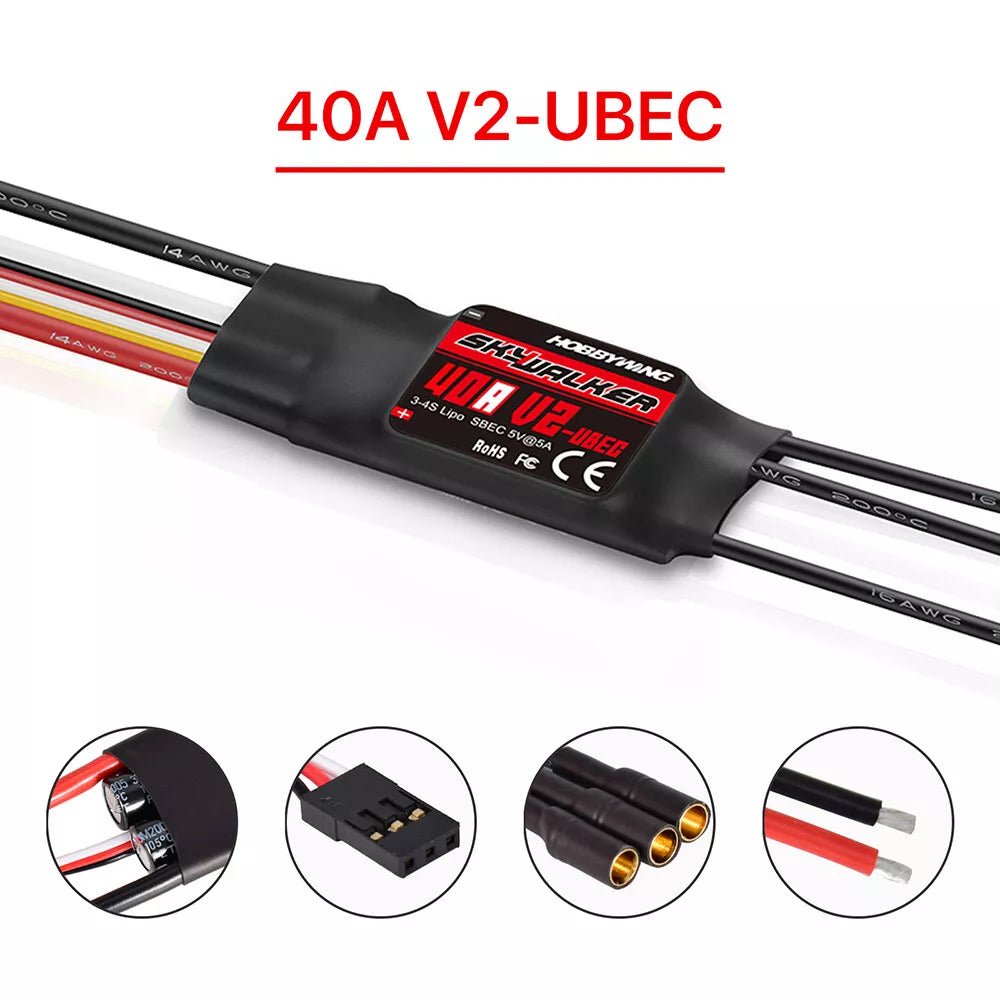

40 AMP Version 2 w/REVERSE
- Model: Skywalker Version 2-40A
- 32 Bit ARM Processor 96Mhz
- Max Speed 2 Pole Motor 300,000
- Continuous Current: 40A
- Burst Current (>10s): 55A
- BEC Mode: Linear
- BEC Output: 5V2A
- BEC Output Capability: 5 Servos
- Battery Cell: 3-4S (Lipo)
- Net Weight: 35g
- Dimension (L x W x H): 68 x 25 x 8mm
- Programmable with Hobbywing LED Program Box or Via Transmitter
50 AMP
- Continuous output: 50A
- Burst current: 60A@10S
- Power input: 2-4S Lixx/5-12S Nixx
- 5V/3A BEC output, switch mode
- Refresh rate: 50Hz-432Hz
- Max.rotation speed: 2-Pole 210000rpm/min; 6-Pole 70000rpm/min; 12-Pole 35000rpm/min
- Dimension: 68*25*12mm
- Weight: 43g

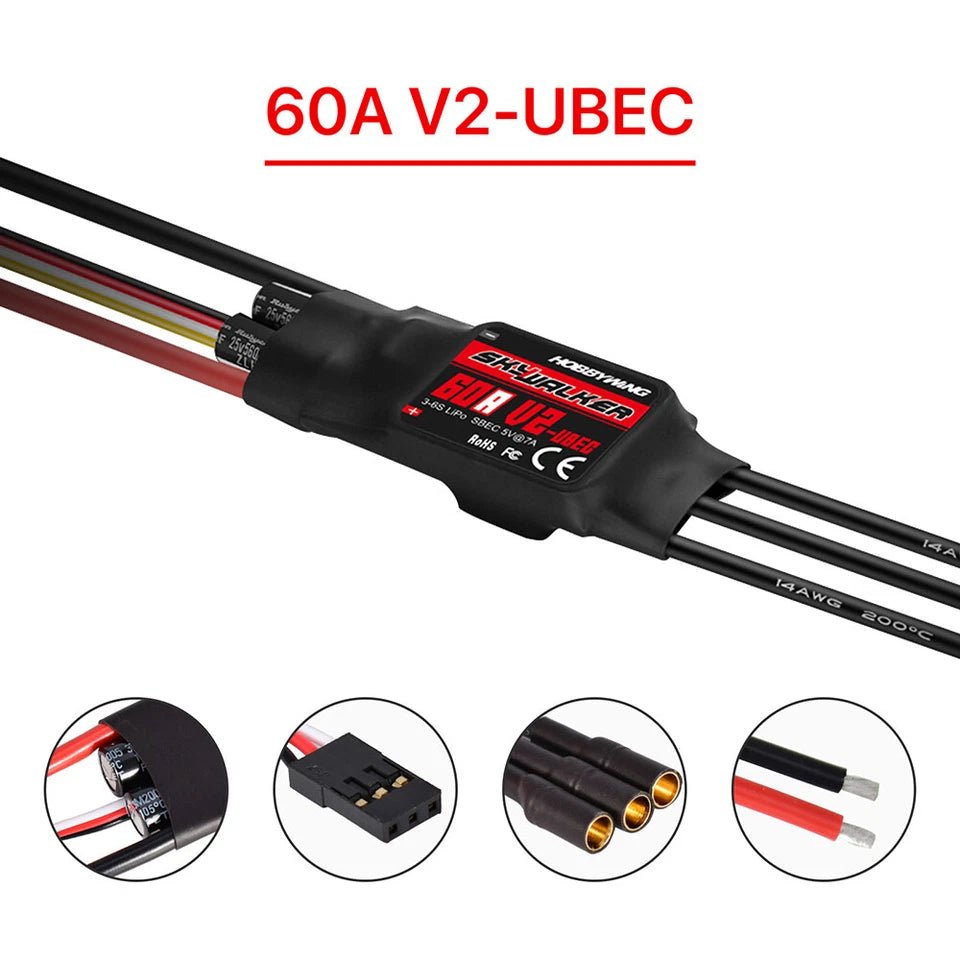

60 AMP Version 2 w/REVERSE
- Constant Current: 60A
- Burst Current (>10s): 80A
- BEC Mode: switch mode
- BEC Output: 5V at 7A
- Battery Cell: 3-6 cells Lipo,or 5-18 cells NiHH
- Refresh Rate: 50Hz-432Hz
- Dimension: 77 x 35 x 14 mm
- Weight: 63g
- Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor)

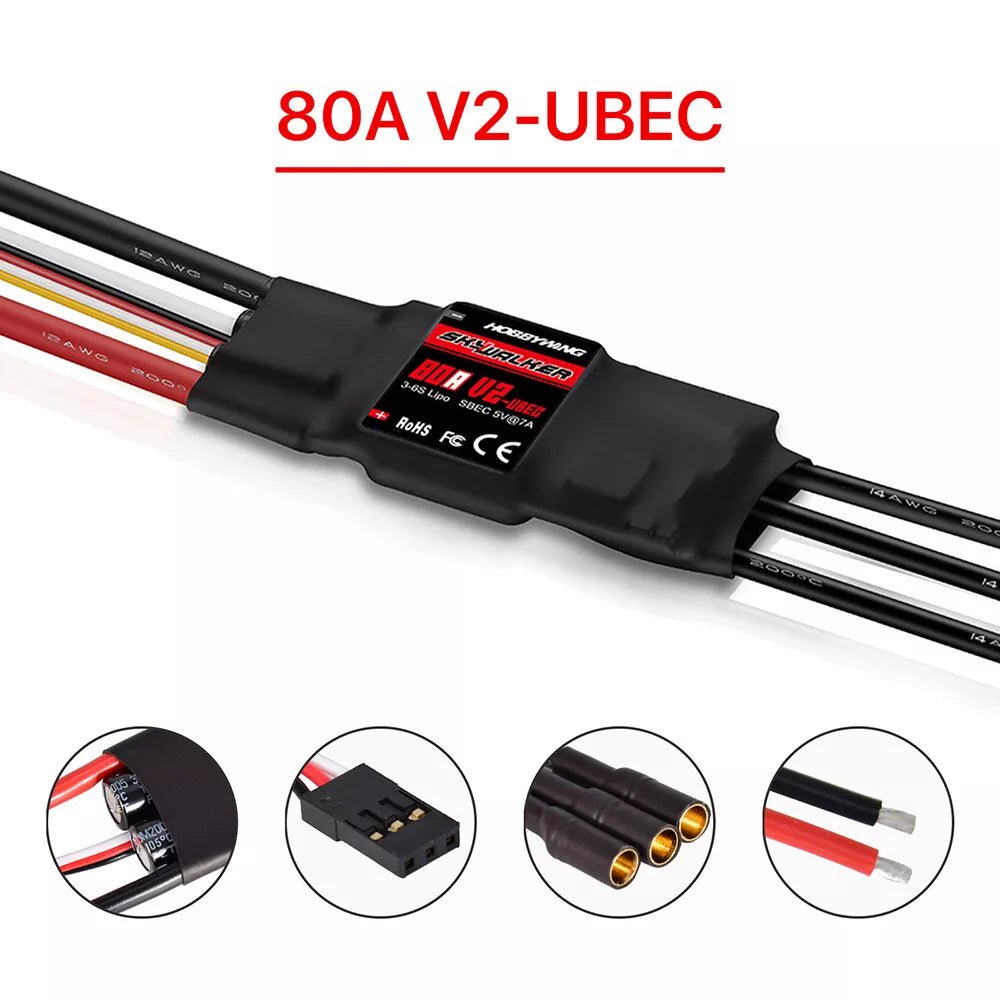

80 AMP V.2 w/Reverse
- Item Name: 80A Version 2 UBEC
- Type: Brushless ESC, Regular voltage
- Features REVERSE
- 32 Bit ARM Processor at 96Mhz
- Programmable with Hobbywing LED Program Box, or via Transmitter
- Cont./Peak Current: 80A/100A
- Input: 2-6S LiPo,5-18s Ni-MH
- BEC Output: Switch Mode--5V,7A
- Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1
- Output Wires: Black-14AWG-100mm*3
- Input Connectors: NO
- Output Connectors: 4.0mm Banana Plugs
- Firmware Upgrade: Not Supported
- Size: 86.0x38.0x12.0mm
- Weight: 82g

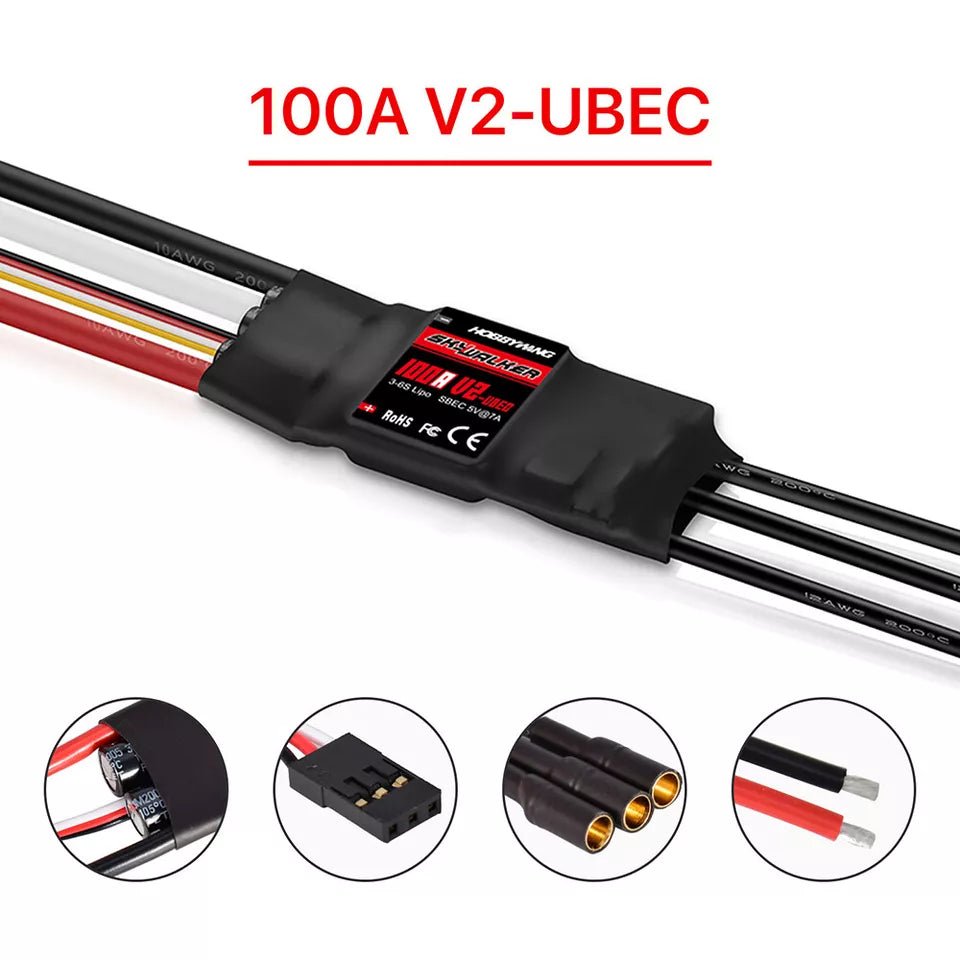

100 AMP V2 w/Reverse
- Item Name: 100A Version 2 UBEC
- Type: Brushless ESC, Regular voltage
- Features REVERSE
- 32 Bit ARM Processor at 96Mhz
- Programmable with Hobbywing LED Program Box, or via Transmitter
- Cont./Peak Current: 100A/120A
- Input: 3-6S LiPo
- BEC Output: Switch Mode--5V,7A
- Input Wires: Red-10AWG-150mm*1,Black-10AWG-150mm*1
- Output Wires: Black-12AWG-100mm*3
- Input Connectors: No
- Output Connectors: 4.0mm Banana Plugs
- Firmware Upgrade: Not Supported
- Size: 86.0x38.0x12.0mm
- Weight: 92g
Features
Safety Arming Feature
Regardless of the throttle stick position, the motor will not spin when Battery is first connected.
Throttle Calibration
Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
Programmable Items
Brake Setting: brake enabled / brake disabled.
Battery Type: Li-xx (Li-ion or LiPo) / Ni-xx (NiMH or NiCd).
Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
Start Mode: normal / soft / very soft.
Timing: low / medium / high.
Lipo Battery Cells: Auto calculate / Set the cells number manually.
Reset: the programmable items to its default setting.

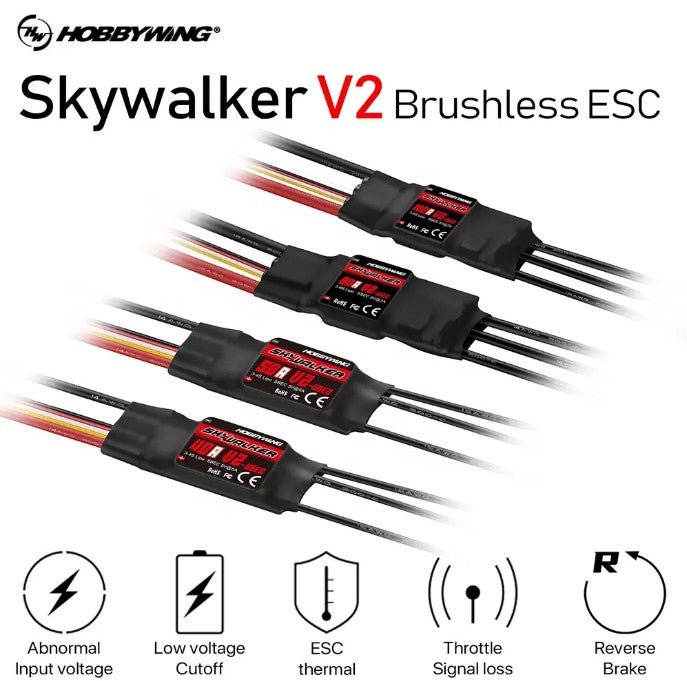

Full Protection Features
Low voltage cutoff protection
Over-heat protection
Throttle signal lost protection
- 1 x Hobbywing Skywalker
- 1x Instruction Sheet
