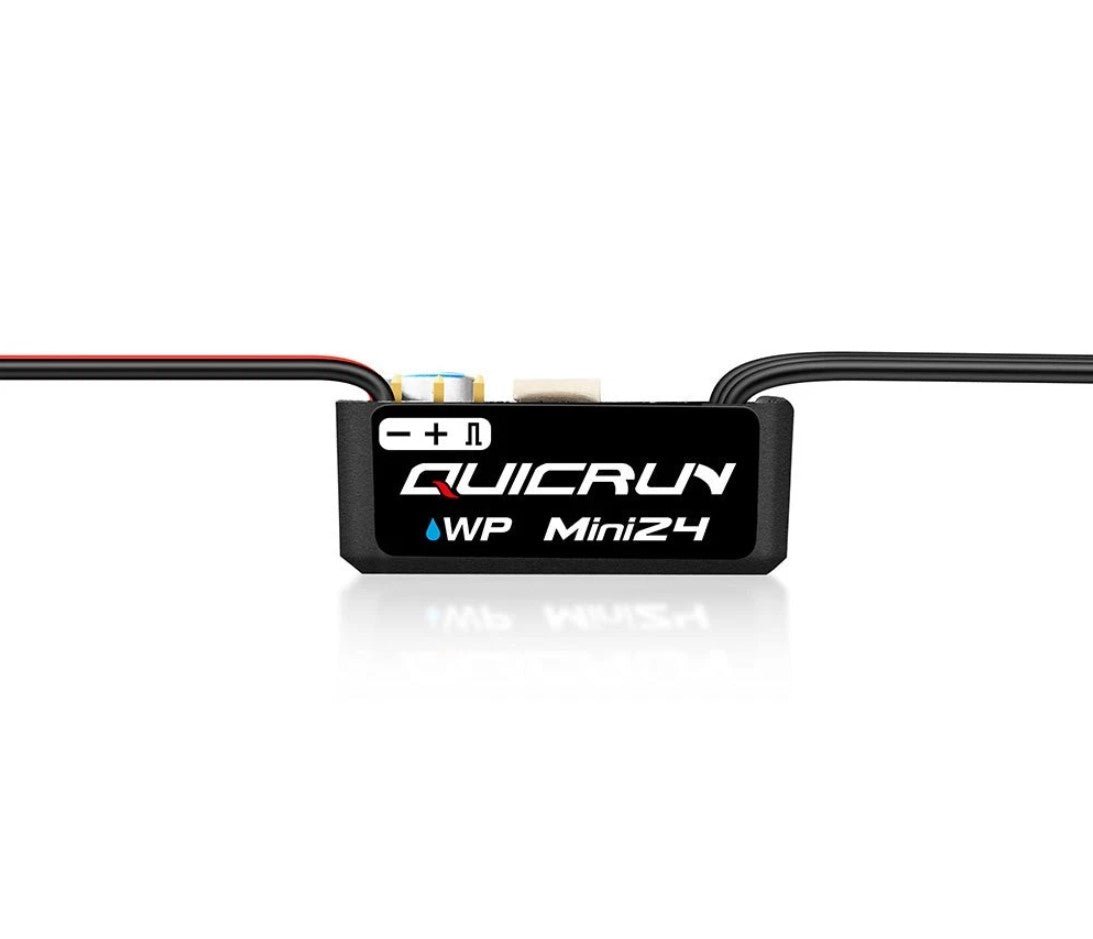

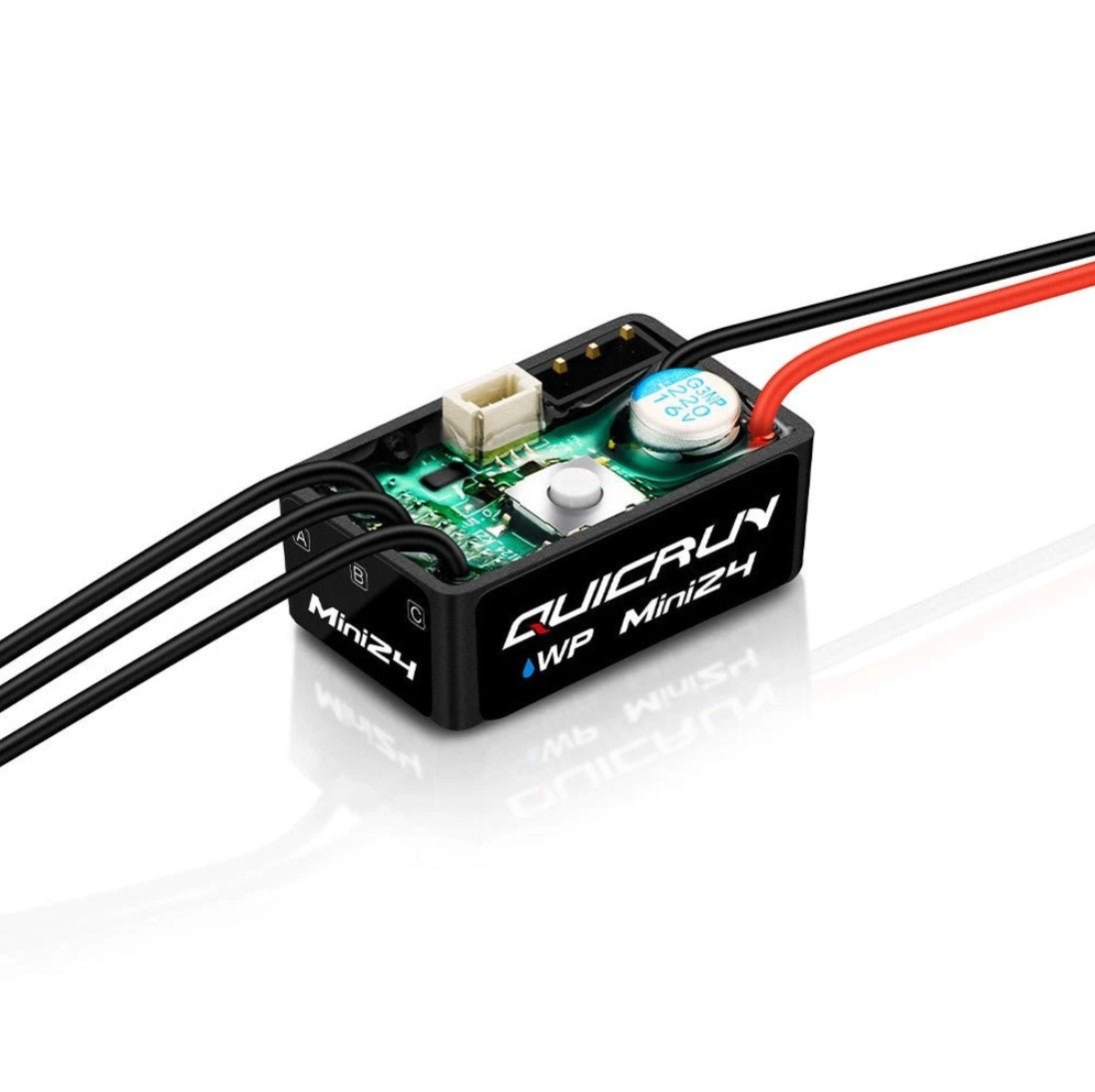

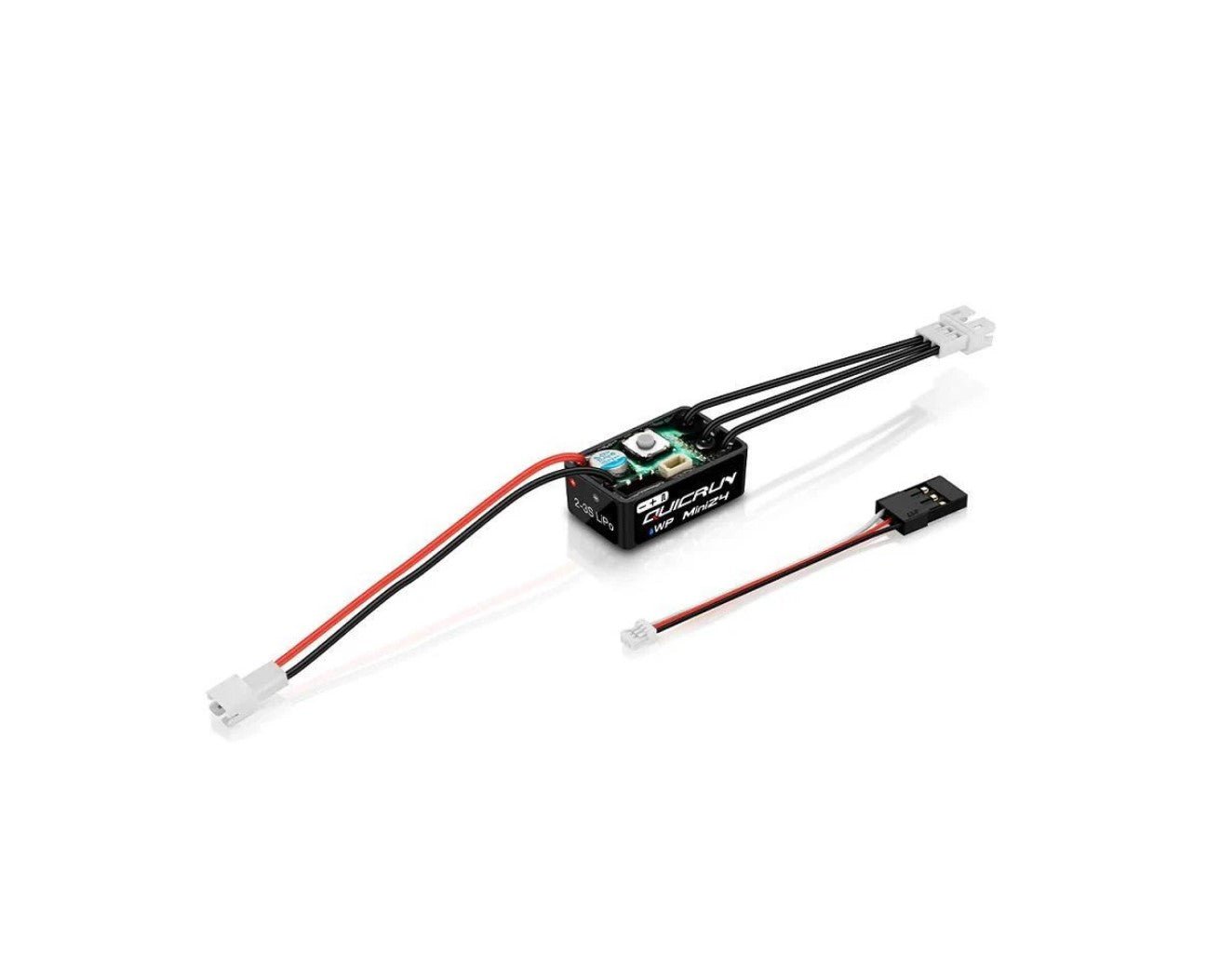

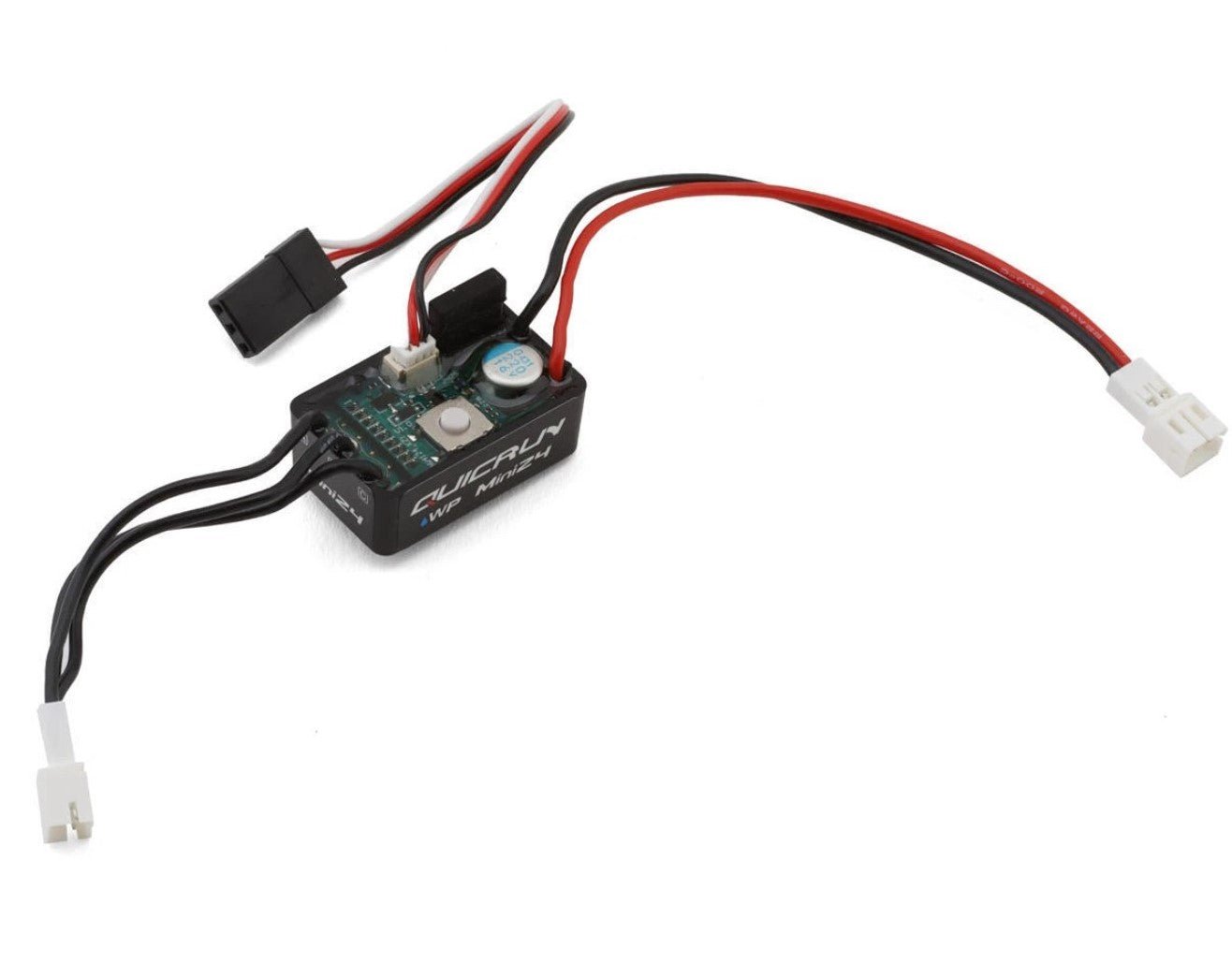

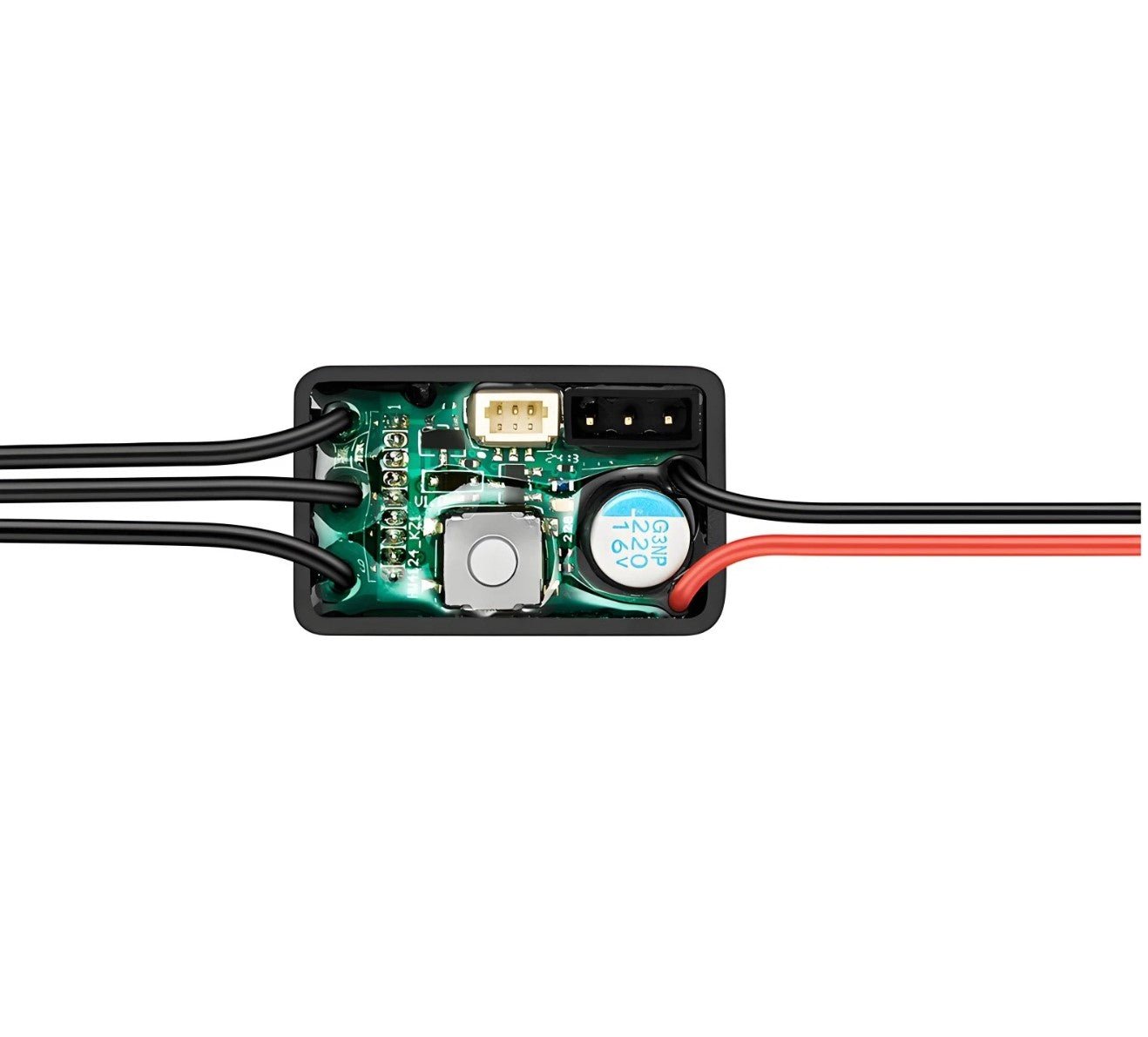

Hobbywing QuicRun WP-Mini24 for 1/24 1/28 Scale RC Cars/Crawlers Mini Z

The QuicRun WP mini24 ESC supports sensorless brushless motors and brushed motors, making it compatible with most motors on the market. Its fully waterproof design ensures reliable performance in all conditions.

• Super internal switch-mode BEC with a switchable voltage of 6V/7.4V for use with high torque and high voltage servos.
• Separate programming port for easy connection of the LED program card or the LCD Pro program box to the ESC.
• Multiple protections, including motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail-safe (throttle signal loss protection).
• Allows real-time adjustment of drag brake force using the transmitter's AUX channel.
•     Ideal for 1/24 rock crawlers where precision and smooth operation are key to conquering rough terrain this ESC is a must have for serious enthusiasts.

• Pair the QuicRun WP mini24 ESC with the QuicRun 1621SL Outer Motor to maximize performance and achieve optimal results.

Features

Supports sensorless brushless and brushed motors

Fully waterproof for all-weather reliability

Switchable BEC voltage for high-torque servos

Multiple protection features for enhanced safety

Real-time drag brake adjustment via AUX channel

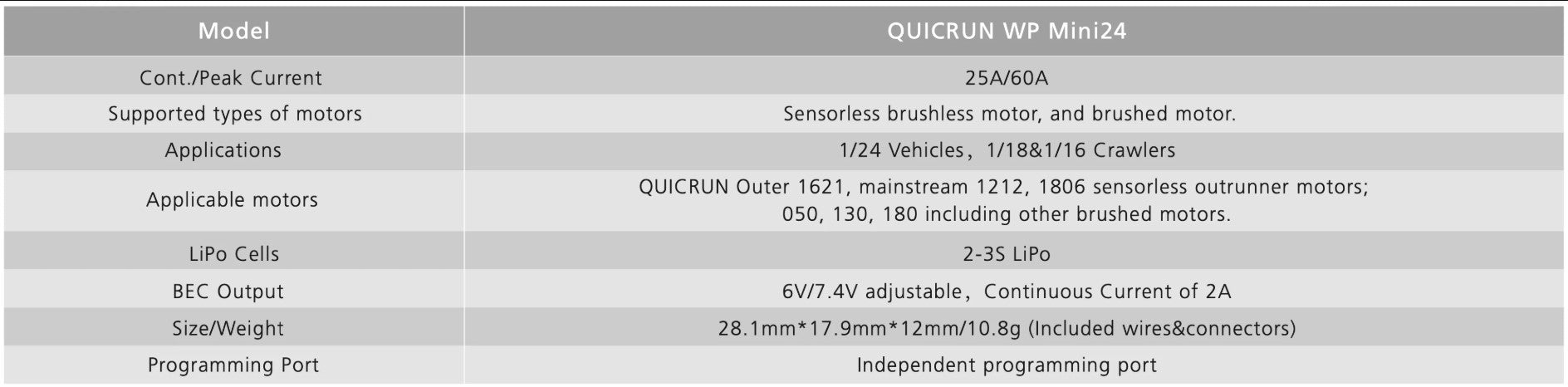

Specifications

Suggested Application: 1/24 Crawler
Motor Type: Sensorless Brushless/Brushed
Input Voltage: 2-3S LiPo
Continuous Current: 25A
Peak Current: 60A
Dimensions (LxWxH): 0.03x0.018x0.012in (28.1x17.9x12mm)
Weight: 0.38oz (10.8g)
Motor Limits: Brushless (1621/1212/1806) or Brushed (050/130/180)
BEC Voltage: 6/7.4V adjustable
BEC Current: 2A
Motor Connector: -
Battery Connector: -
Throttle Wire: Servo Wire
Programming: Button / Remote Program Box

Includes

1x Quicrun Mini24 Waterproof ESC

1x User Manual

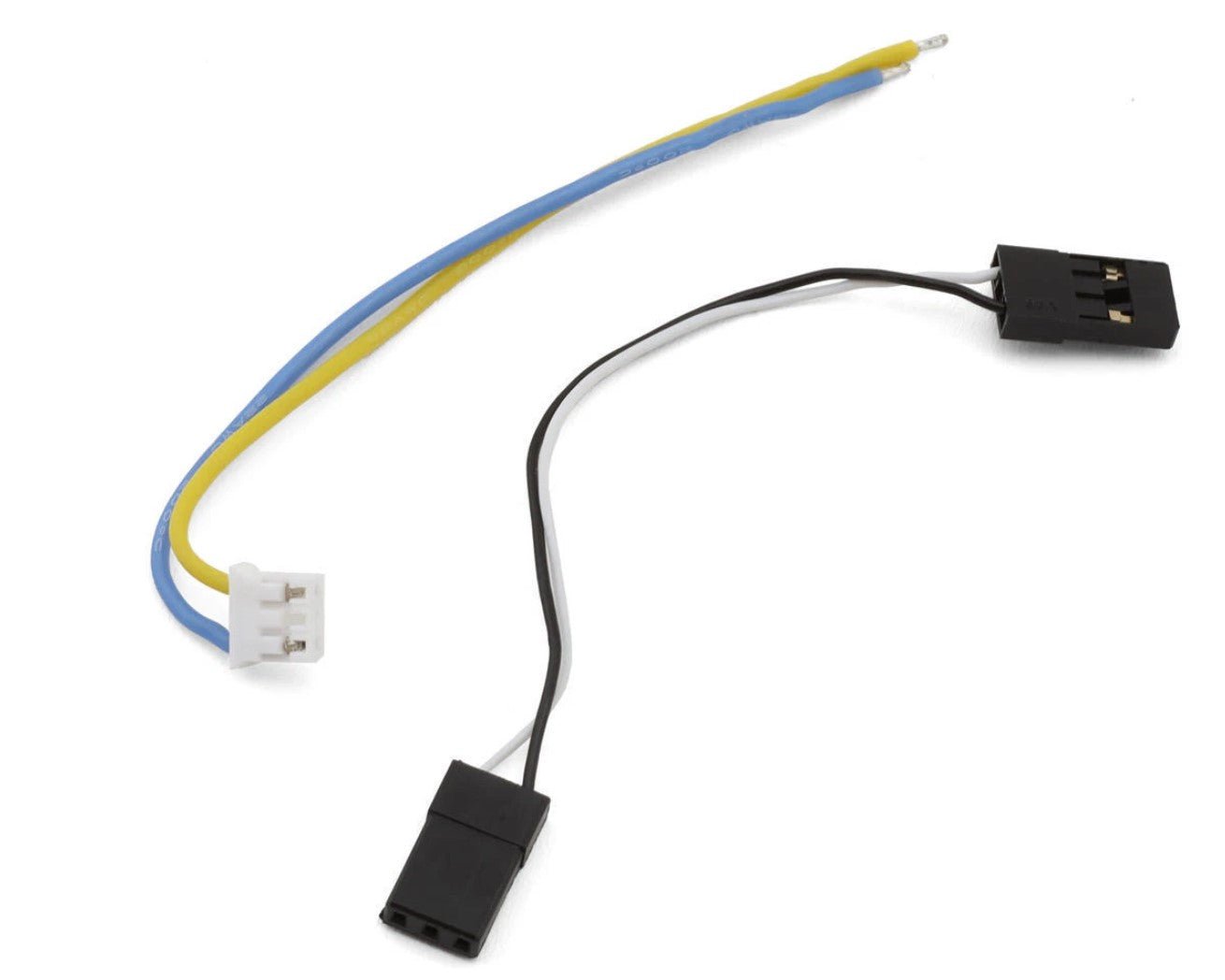

3x Accessories Wires

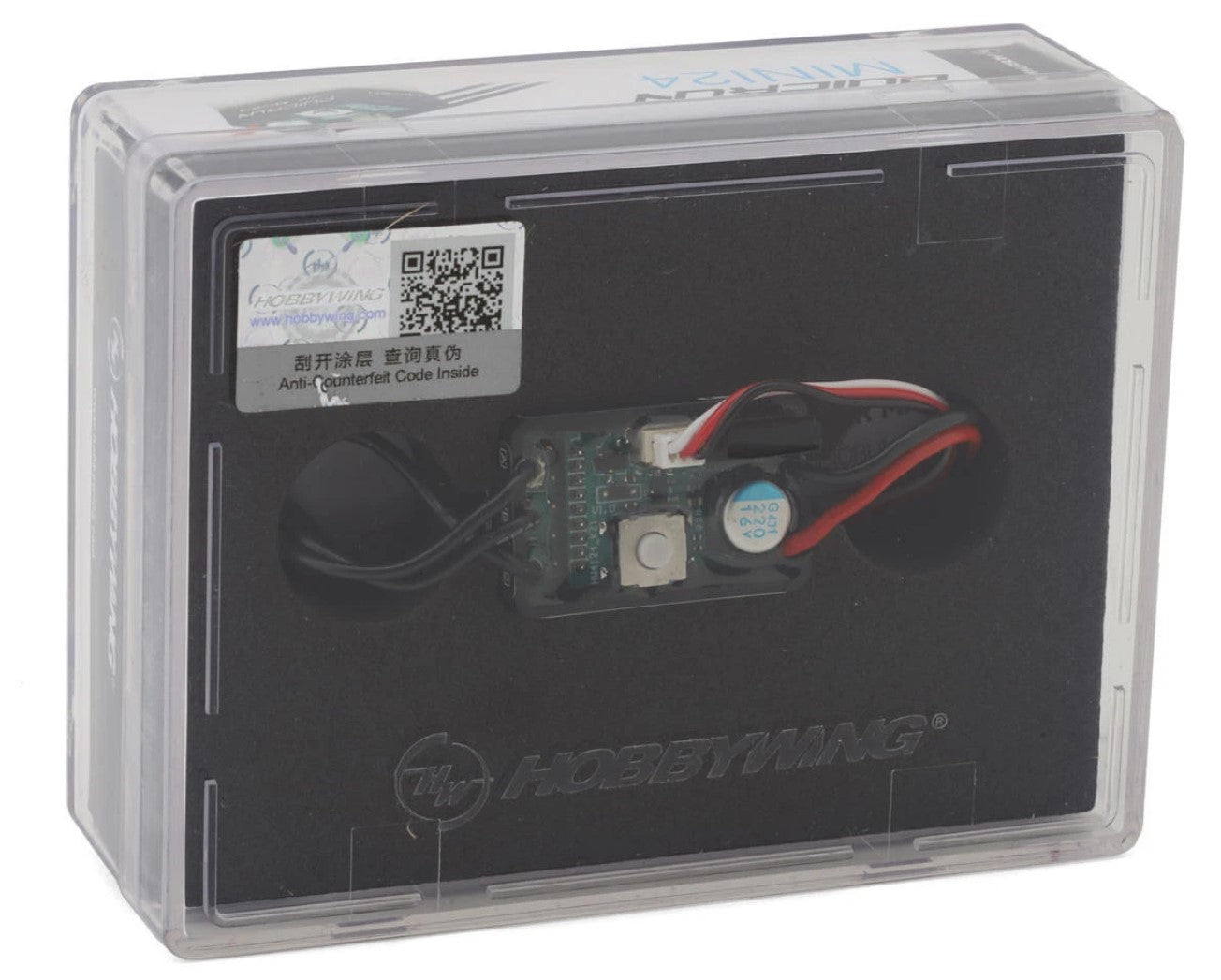

1x Clear Hobbywing Plastic Storage Case
