FlyColor X-Cross HV 5s-12s Lipo ESC 60A 80A and 120Amp ESC
FLYCOLOR X-Cross HV3 ESC w/Cap Packs
These are the perfect ESC if you want explosive power! From 5s, 6s, 8s, 10s and all the way Up to 12s Lipo Power. ESC’s come with 4.0mm Bullets and wires Presoldered (will need to solder battery connector). Makes a great match with Surpass Hobby 6354 245kv Brushless motors and others similar.
You will need to run a seperate BEC or Battery Pack to supply power to Receiver and Servos.
60 Amp
- Model: Flycolor X-Cross HV 60 amp
- BEC Mode: None
- Battery Cell: 5s-12s (Lipo)
- Net Weight: 25.5 grams w/o cables 57.5 grams w/cables
- Dimension (L x W x H): 55 x 28 x 10mm
- Cable length: Motor Leads 4.0mm Banana Plugs 120mm
- Battery Cable length: 100mm
- Receiver Cable length: 535mm
80 Amp
- Model: Flycolor X-Cross HV 80 amp
- BEC Mode: None
- Battery Cell: 5s-12s Lipo
- Net Weight: 26 grams w/o cables 61.5 grams w/cables
- Dimension (L x W x H): 55 x 28 x 10mm
- Cable length: Motor Leads 4.0mm Banana Plugs 120mm
- Battery Cable length: 100mm
- Receiver Cable length: 535mm

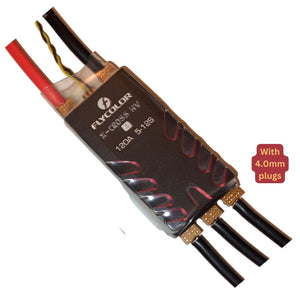

120 Amp
- Model: Flycolor X-Cross HV 120 Amp
- BEC Mode: None
- Battery Cell: 5s-12s Lipo
- Net Weight: 132 grams w/o cables 154 grams w/cables
- Dimension (L x W x H): 82 x 34 x 21mm
- Cable length: Motor Leads 4.0mm Banana Plugs 120mm
- Battery Cable length: 325mm
- Receiver Cable length: 535mm
Features
● ARM 32-bit Cortex MCU, frequency up to 48 MHZ. 25% Higher than the previous generation of MCU.
● International famous brand MOSFET with high performance and low ESR, can handle large current
● BLHeli_32 firmware,which is designed for superior functionality and performance
● Wide voltage support, up to 12S liPo, suitable for x-class drone
● Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multshot (5- 25us). The input signal is automatically detected by the ESC upon power up. Dshot signal is supported at any rate.
● Small size, light weight, suitable for the drone with narrow arms.
● Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
● The silicone twisted-pair of the throttle signal cable effectively reduces the crosstalk caused by signal transmission, and makes flight more stable.
● Aluminum heat sink effectively slow down the temperature rise.. 120Amp and Over feature Dual Aluminum Heat Sinks
- Built in Current Meter
Multiple Protocols
Supports regular 1-2ms pulse width input, as well as Oneshot 125 (125-250us), Oneshot 42 (41.7-83.3ms) and Multishot (5-25us). The input signal is automatically detected by the ESC upon power up. All Dshot and Proshot signals are supported.
