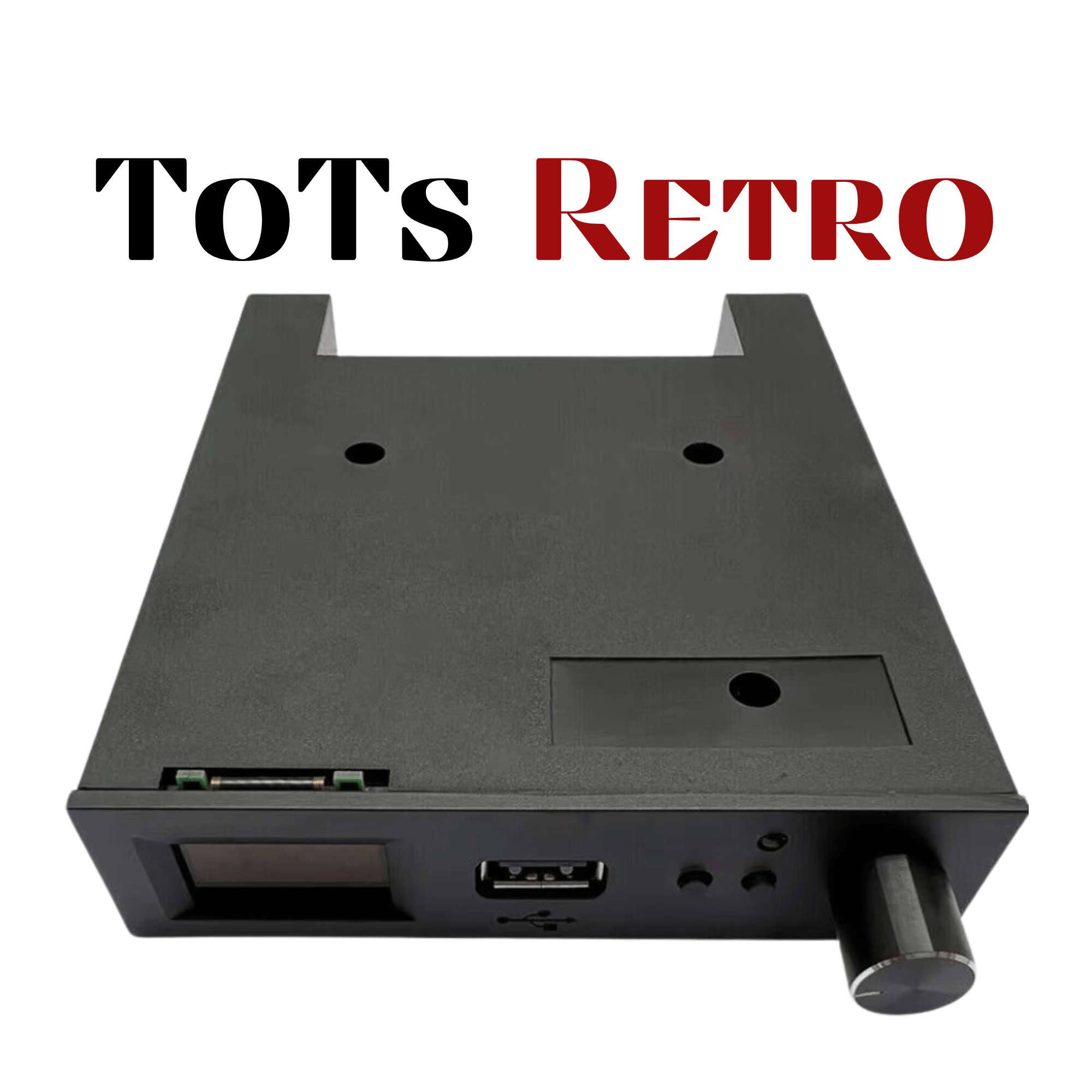

GOTEK DRIVE v3.42 Floppy Drive Emulator



for use with Commodore 64, 64c, 128, 128D, 128DCR, Plus 4, C16, C116, Amiga, Atari, 1581, CMD FD2000, CMD FD4000

Offered by: ToTs RETRO







New Gotek model AT32F435 435 Chip circuit board

  • More CPU power (288MHz vs 72MHz)
  • More SRAM (384kB vs 32kB)
  • Latest firmware flash floppy V3.42



    • Directly supports a wide range of image formats:
      • ADF (Commodore Amiga)
      • D81 (1581 Commodore Drive)
      • ADM, ADL, ADF, DSD, SSD (Acorn DFS and ADFS)
      • DSK (Amstrad CPC, Spectrum +3, Sam Coupe)
      • IMG, IMA, DSK (IBM MFM Raw Sector)
      • MGT (Spectrum DISCiPLE/+D)
      • OPD (Spectrum Opus Discovery)
      • SDU (SAB Diskette Utility)
      • ST (Atari ST)
      • TRD (Spectrum TR-DOS)
      • V9T9, DSK (TI-99/4A)
      • HFE, HFEv3 (Universal)
    • Specification:
      * Model: SFR1M44-U100LQD-435
      * The AT32F435 has 384KB of RAM ! (This was 32KB for the AT32F415 and 64KB for the STM32F105)
      * The AT32F435 can run at 288MHz ! (This was 150MHz for the AT32F415 and 72MHz for the STM32F105)
      * This hardware revision removes the 32KB memory size challenge introduced by the "SARS-CoV-2" Goteks (based on the AT32F415).
      * Regarding the HxC firmware the new v5 version is now compatible with this new core.
      * It still compatible with the STM32 and AT32F415 Goteks.
      * Fine workmanship and good performance.
      * Easy to use and long service life.



    Available Colors: Black or Grey

    Notes:  On PC, for Commodore series computer, Use "DirMaster v3.1.5/Style"  to make your images then transfer to your own USB Memory Stick. Software available from Style64 org

    Base GoTek Model works great in a Commodore 1581

    Updated GoTeK Firmware Model works great for CMD-FD2000 and CMD-FD4000 (you will still need to have an original CMD Drive or a Reproduced Drive)  The Updated GoTek Model works in both CMD drives.  If using the CMD FD2000, you will be able to use .d81 standard 1581 format .d1m (native)  and .d2m (High density) format for Commodore.  If using a CMD FD4000 you will have access to the 4 main sizes .d81, .d1m, .d2m, .d4m (extra-high density) format for commodore computers. This drive emulator will come with pins configured for CMD drives.



    ALL units are tested before being Shipped.

    If you have any questions, please do not hesitate to reach out.
