Commodore Amiga A500 / Amiga A1200 Recap Capacitor Kits
Commodore Computer Logic Board Re-Cap Upgrade Kits
For use with Commodore Amiga 500 computers, such as rev 3, 5, 6 and 6a
Offered by: ToTs RETRO
These kits includes the exact amount of Radial Capacitors necessary to recap your logic board. Each Kit Varies. You must provide your own tools and equipment to perform the task.
I do not include soldering instructions or board instruction, some knowledge is required to perform this job, do some research before tackling the task. Make a map (take pictures) of the Caps that you remove, its values and where they went. This will help you in remembering where they go. Take your time, do not force the caps off or on. Clean the mount pads. Be gentle to your Retro Amiga and let’s make it last another 30 years.

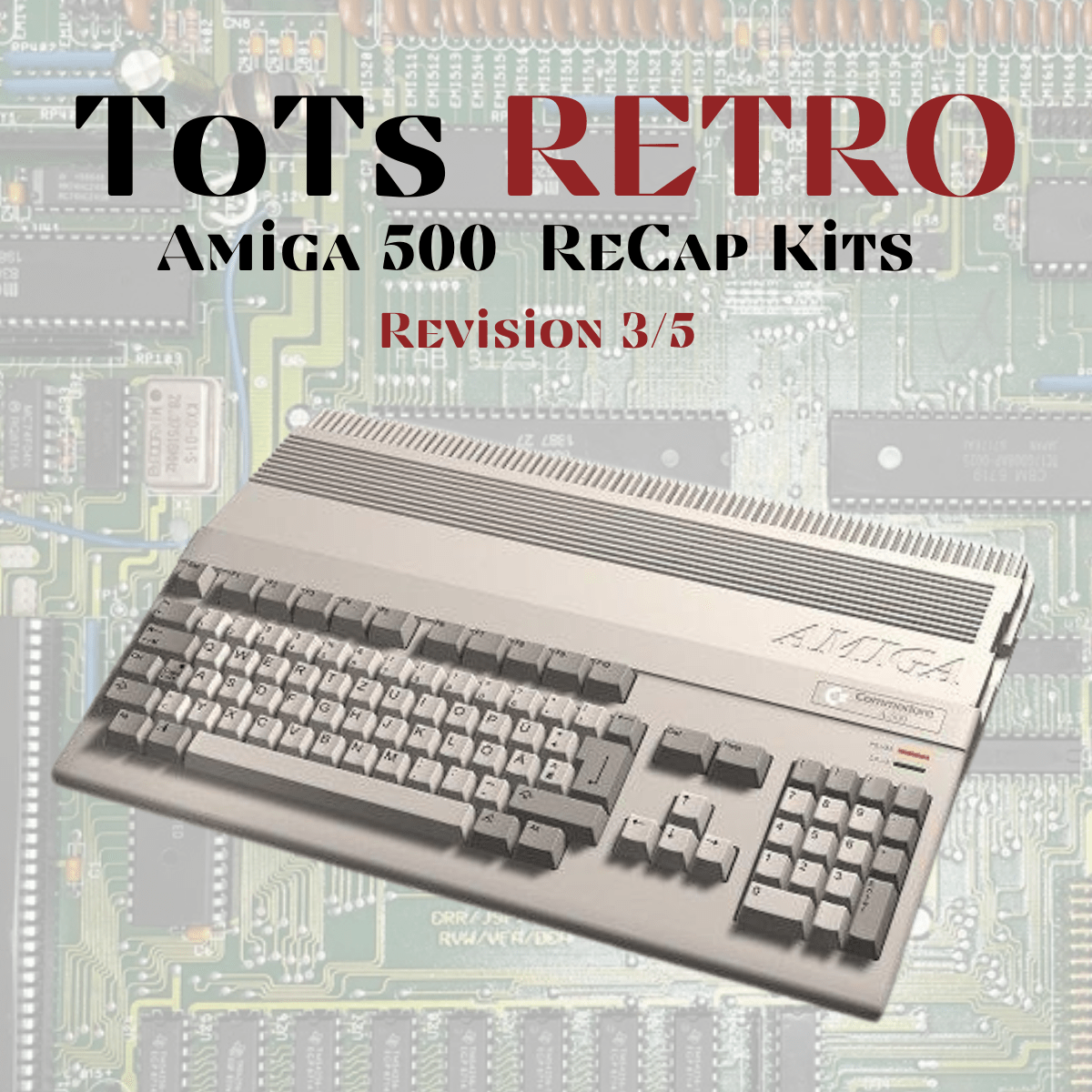

RECAP KITs for Amiga 500
Rev 3/5
Cap - Value - Rating - Type
C303 - 22uf - 50v - Radial
C304 - 22uf - 50v - Radial
C306 - 10uf - 50v - Radial
C307 - 100uf - 16v - Radial
C324 - 22uf - 50v - Radial
C334 - 22uf - 50v - Radial
C401 - 3300uf - 25v - Radial
C402 - 3300uf - 25v - Radial
C712 - 10uf - 50v - Radial
C811 - 100uf - 16v - Radial
C812 - 47uf - 16v - Radial
C813 - 47uf - 16v - Radial
C814 - 47uf - 16v - Radial
C815 - 47uf - 16v - Radial
C821 - 47uf - 16v - Radial
C822 - 47uf - 16v - Radial

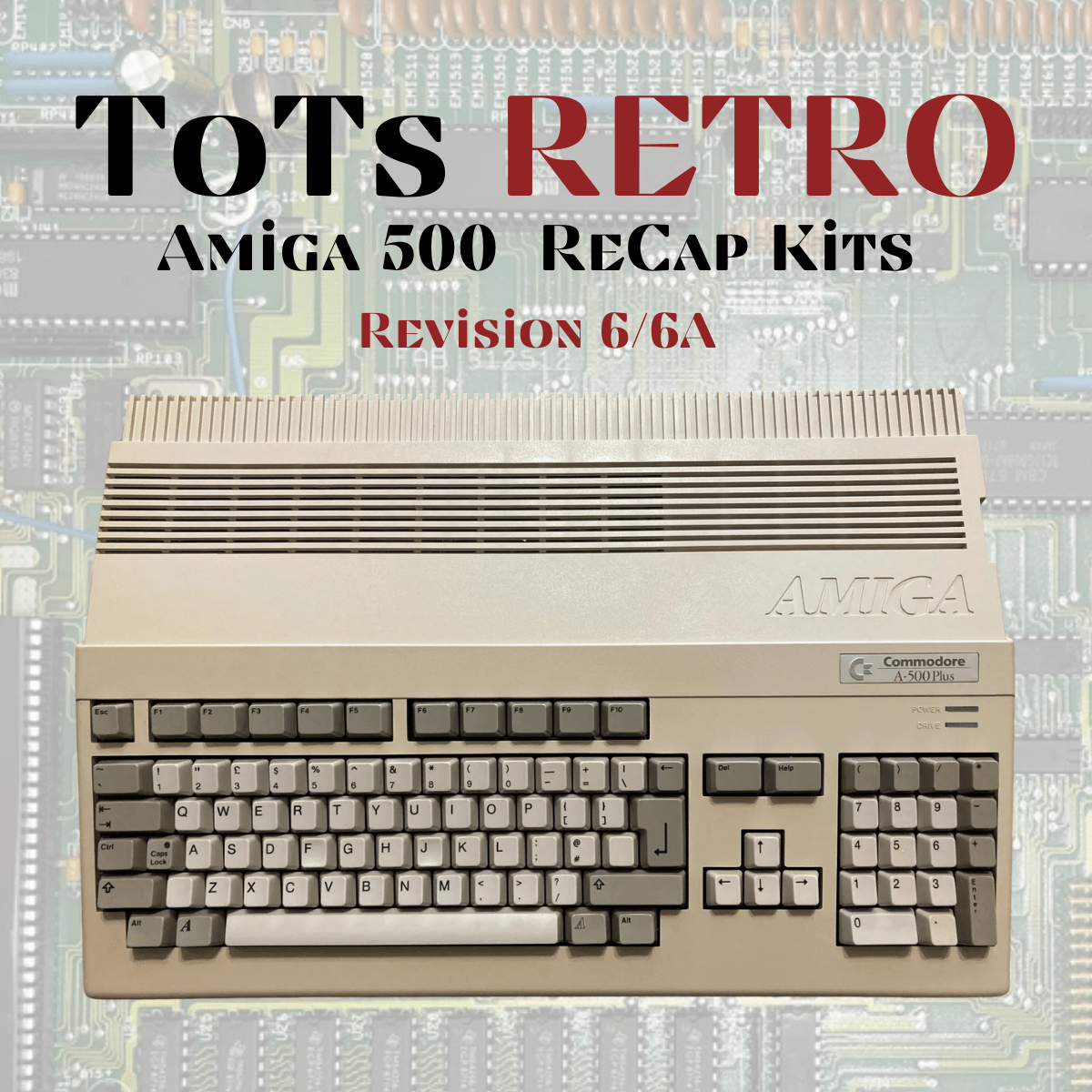

Rev 6/6A
Cap - Value - Rating - Type
C821 - 47uf - 50v - Radial
C822 - 47uf - 50v - Radial
C811 - 100uf - 50v - Radial
C812 - 100uf - 50v - Radial
C813 - 100uf - 50v - Radial
C814 - 100uf - 50v - Radial
C815 - 100uf - 50v - Radial
C816 - 100uf - 50v - Radial
C307 - 470uf - 25v - Radial
C303 - 22uf - 50v - Radial
C304 - 22uf - 50v - Radial
C324 - 22uf - 50v - Radial
C334 - 22uf - 50v - Radial
C306 - 10uf - 50v - Radial
C712 - 10uf - 50v - Radial
C401 - 3300uf - 25v - Radial
C402 - 3300uf - 25v - Radial

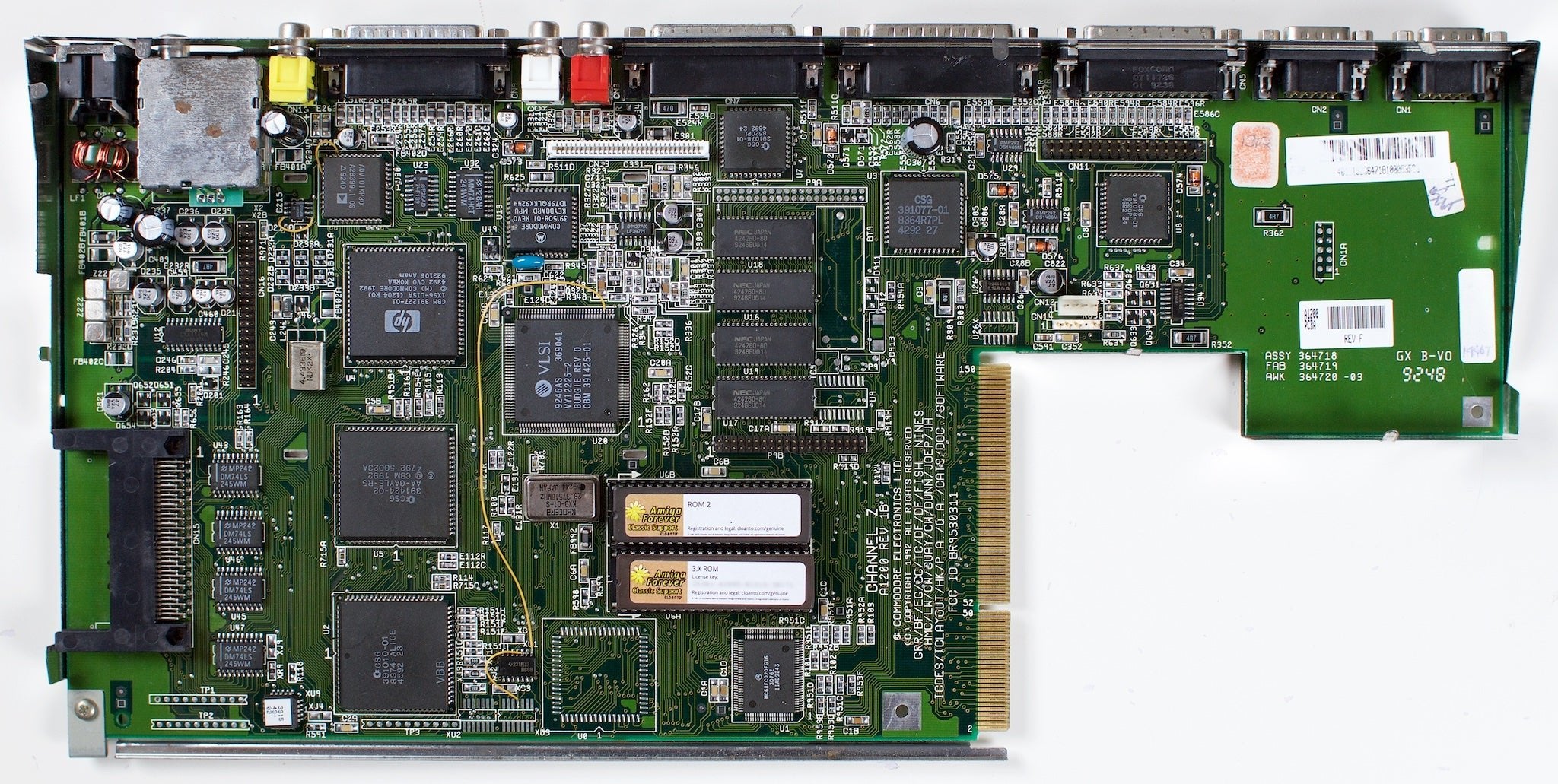

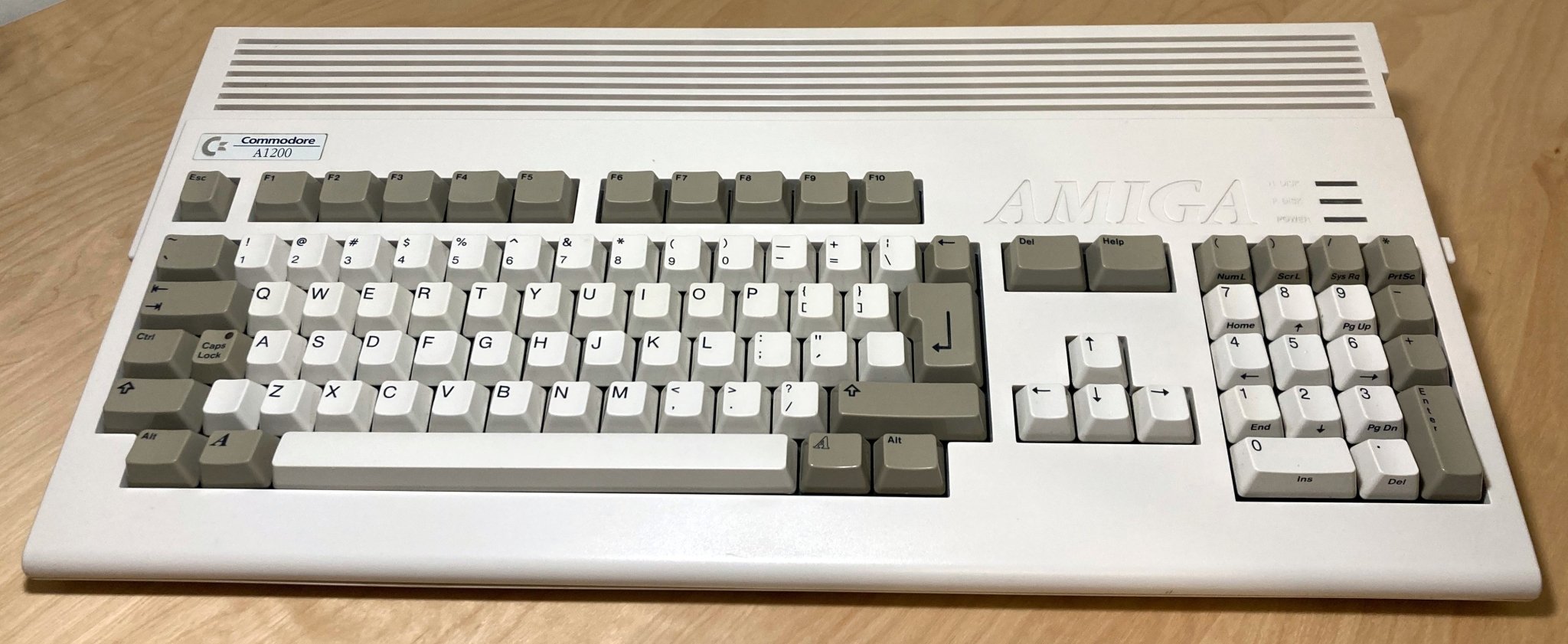

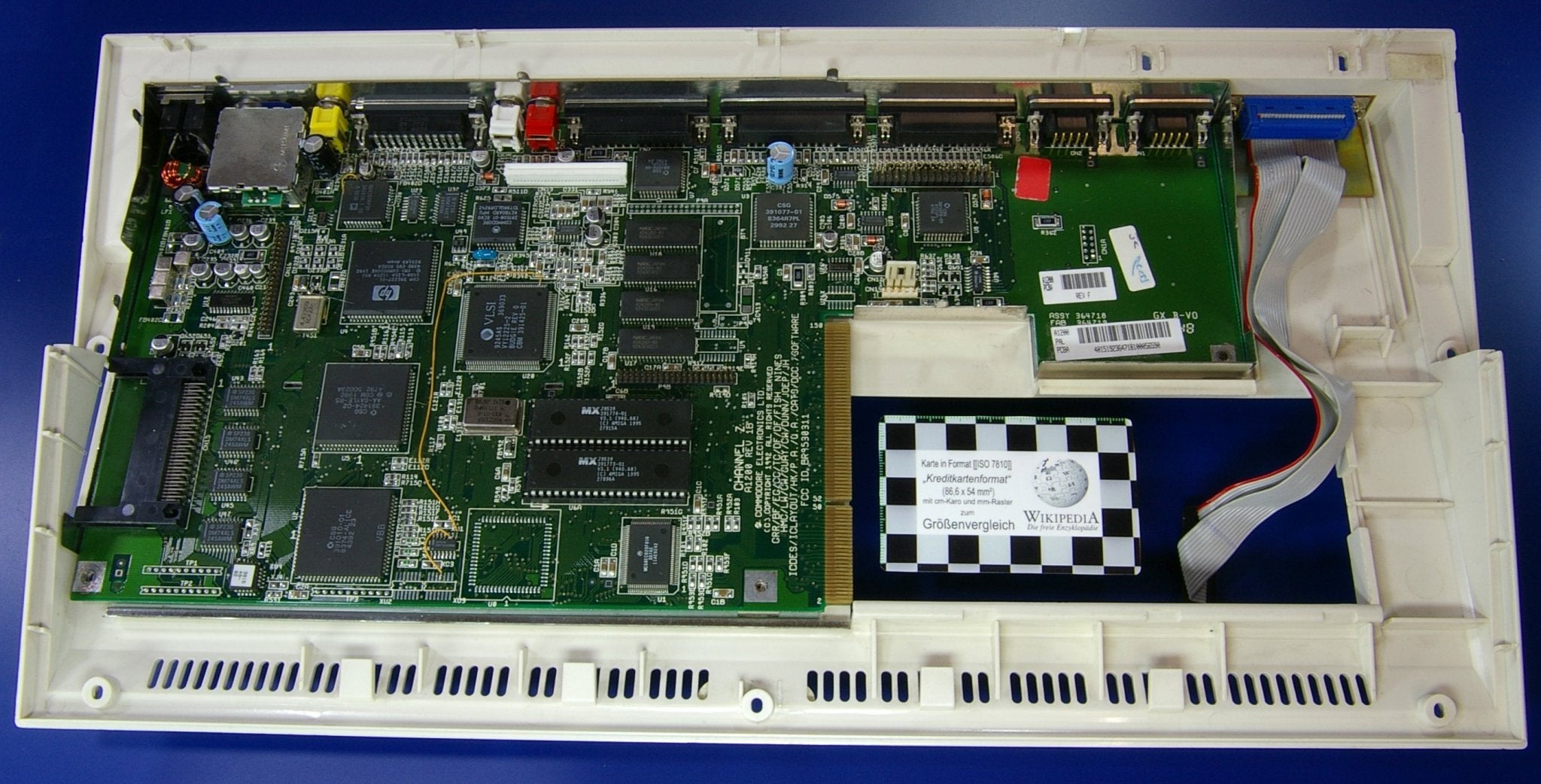

Amiga 1200
Cap - Value - Rating - Type C214 - 10uf - 25v - Tantalum C305 - 10uf - 25v - Tantalum C407 - 10uf - 25v - Tantalum C303 - 22uf -35v(25v) - Tantalum C304 - 22uf -35v(25v) - Tantalum C324 - 22uf - 16v - Tantalum C334 - 22uf - 16v - Tantalum C459 - 22uf -35v(25v) - Tantalum C821 - 47uf - 16v - Tantalum C822 - 47uf - 16v - Tantalum C235 - 100uf - 6.3v - Tantalum C236 - 100uf - 6.3v - Tantalum C239 - 100uf - 6.3v - Tantalum C409 - 100uf - 6.3v - Tantalum C237 - 470uf - 16v - Axial C307 - 470uf - 16v - Axial C408 - 1000uf - 10v - Axial C811 - 1000uf - 10v - Axial

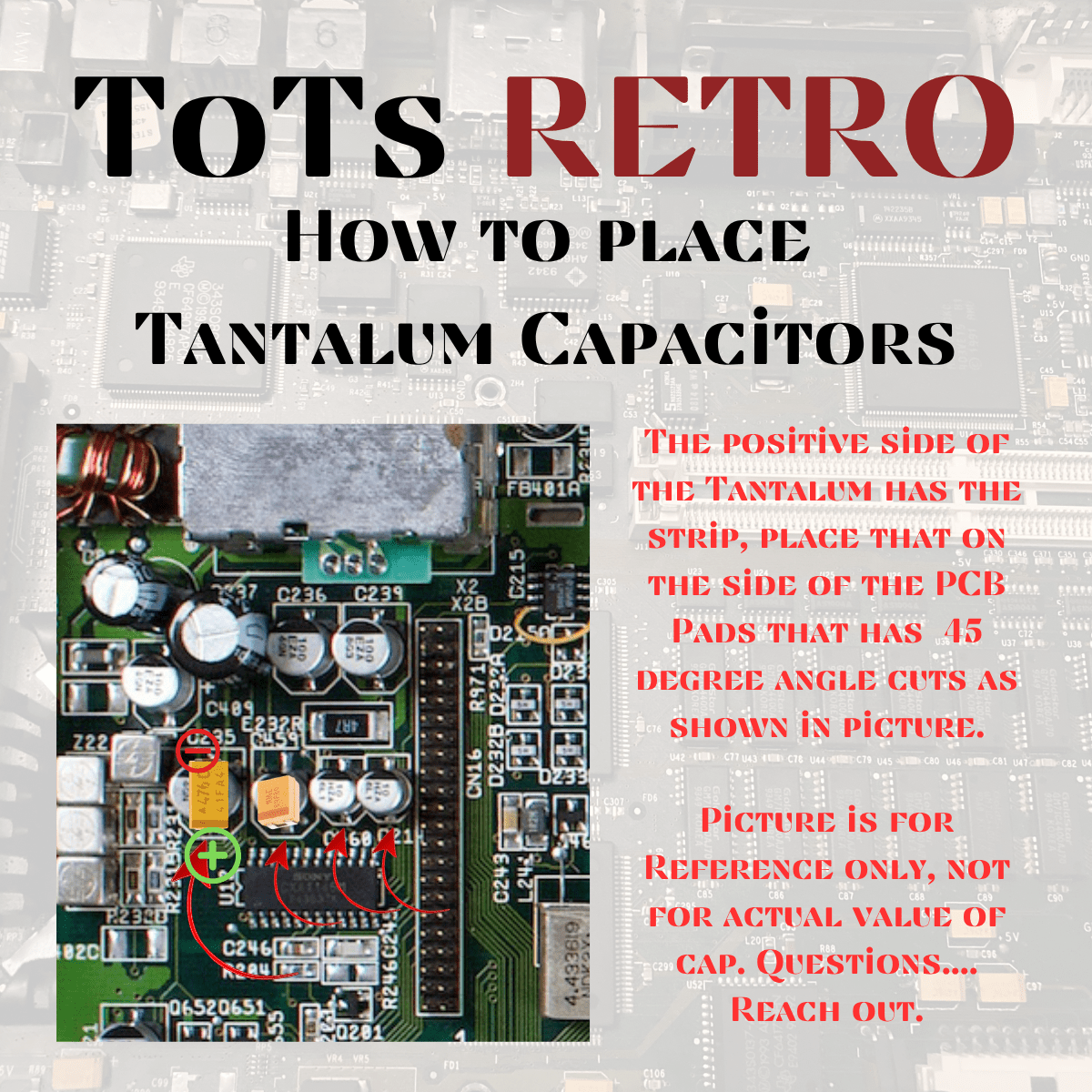

All Electrolytic SMD Caps have been replaced by Tantalum caps.
It is just my prefernce when recapping.
35v SMD Capacitors are replaced by 25 volt Tantalum Capacitor. Since
the Amiga 1200 runs off of 5v and 12v, 25 volt tantalum should be more
than adequate.
If you have any questions, please do not hesitate to reach out.
