Commodore 64, Commodore 128, Vic 20, Plus 4, C16 Recap Capacitor Kits
Commodore Computer Logic Board Re-Cap Upgrade Kits
For use with many Commodore computers, such as Commodore 64,64c,128,128 DCR, Plus 4, C-16
Offered by: ToTs RETRO
These kits includes the exact amount of Axial, Radial and Tantalum Capacitors necessary to recap your logic board. Each Kit Varies. You must provide your own tools and equipment to perform the task.
I do not include soldering instructions or board instruction, some knowledge is required to perform this job, do some research before tackling the task. Make a map (take pictures) of the Caps that you remove, it's values and where they went. This will help you in remembering where they go. Take your time, do not force the caps off or on. Clean the mount pads. Be gentle to your Retro Commodore and let’s make it last another 30 years.
RECAP KITs for COMMODORE
-
All kit contains all necessary capacitors in order to RECAP your ASSY Commodore motherboard (C64/VIC20/C16/C128/Plus4)
-
Each Capacitors goes thru testing personally by me, to make sure you receive the best.
-
Some Capacitors will be upgraded, Mainly in voltage, this will not affect performance for example, since some capacitors are extremely rare to source like 1uF-16v these will be replaced with 1uF-50v, similar rare to source capacitors will be upgraded in the same manner.

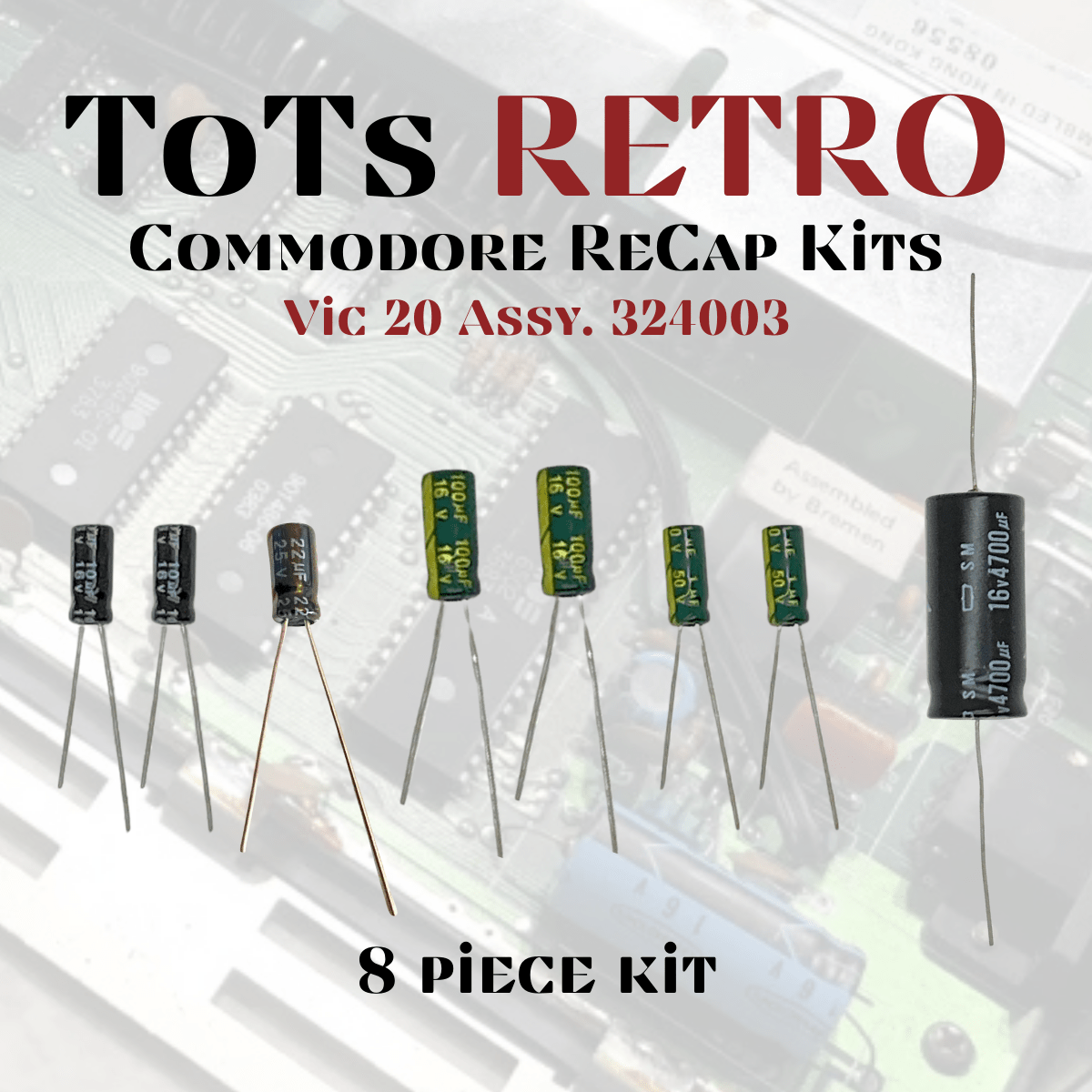

VIC20 Capacitors Assy 342002 Rev E

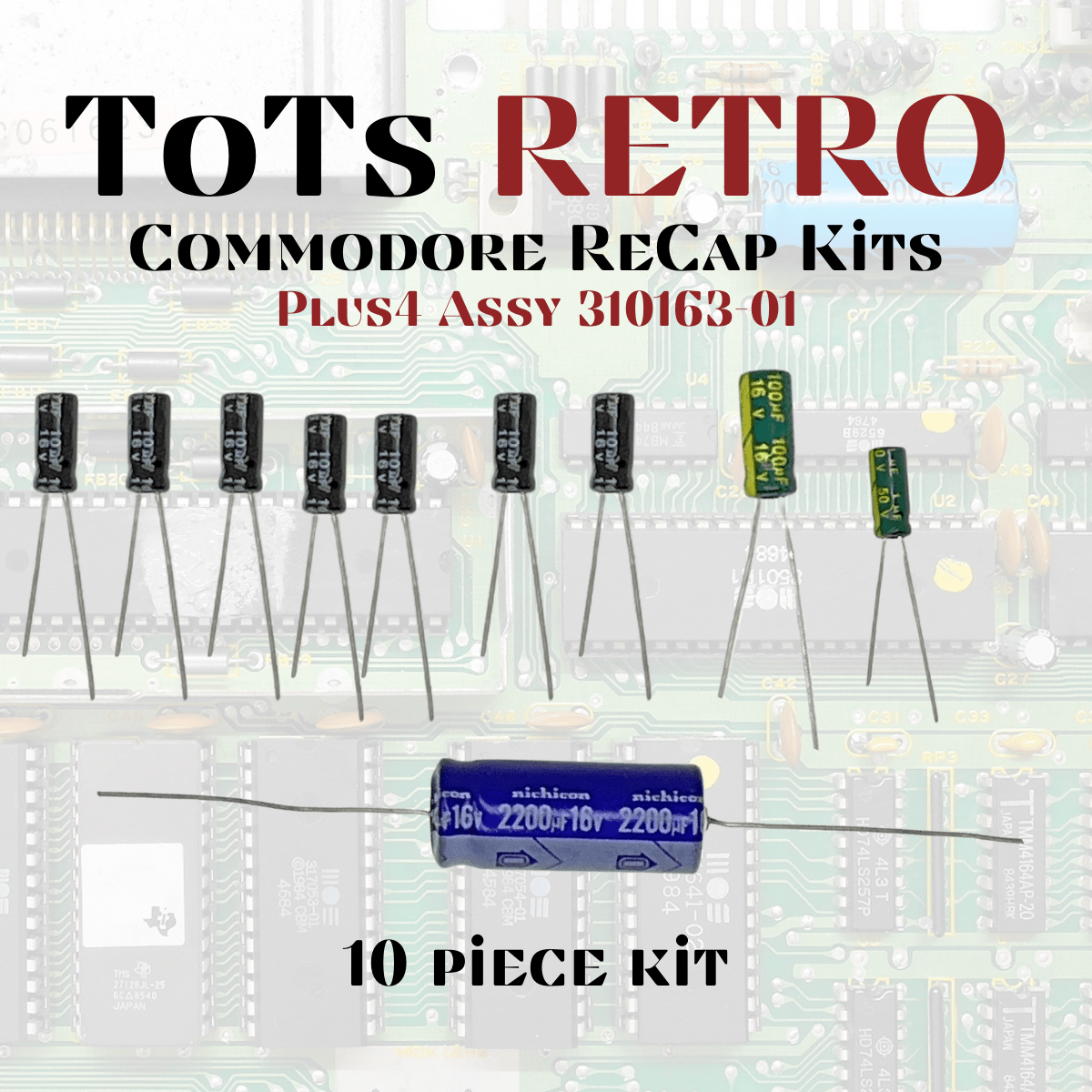

PLUS4 CAPACITORS ASSY 310163-01
Cap - Value - Rating - Type
C1 - 100uf - 16v - Radial
C7 - 2200uf - 16v - Axial
C8 - 10uf - 16v - Radial
C17 - 10uf - 16v - Radial
C18 - 10uf - 16v - Radial
C20 - 10uf - 16v - Radial
C22 - 10uF - 16v - Radial
C23 - 1uf - 16v - Radial
C27 - 10uf - 16v - Radial
C30 - 10uf - 16v - Radial
C16 CAPACITORS ASSY 250443-01
Cap - Value - Rating - Type
C1 - 1uf - 25v - Radial
C2 - 47uf - 25v - Radial
C3 - 10uf - 25v - Radial
C4 - 10uf - 25v - Radial
C16 - 10uf - 25v - Radial
C17 - 1uf - 16v - Radial
C18 - 10uF - 25v - Radial
C19 - 10uf - 25v - Radial
C31 - 10uf - 25v - Radial

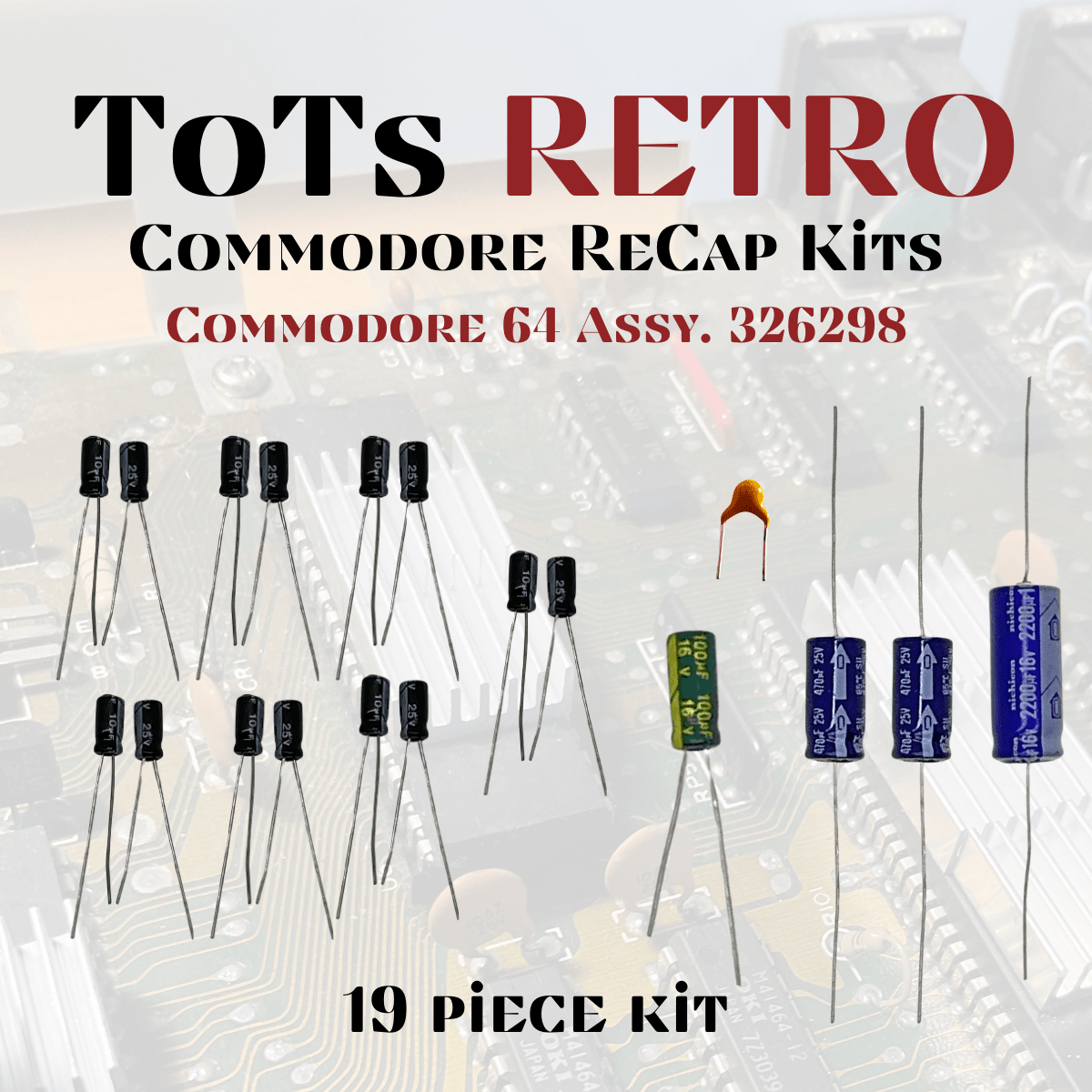

C64 CAPACITORS ASSY 326298
Cap - Value - Rating - Type
C8 - 10uf - 25v - Radial
C12 - 10uf - 25v - Radial
C13 - 10uf - 25v - Radial
C14 - 10uf - 25v - Radial
C15 - 10uf - 25v - Radial
C17 - 10uf - 25v - Radial
C19 - 2200uF - 16v - Axial
C24 - 10uf - 25v - Radial
C34 - 10uf - 25v - Radial
C57 - 10uf - 25v - Radial
C62 - 10uf - 25v - Radial
C64 - 10uf - 25v - Radial
C65 - 10uf - 25v - Radial
C88 - 470uF - 25v - Axial
C90 - 470uF - 25v - Axial
C91 - 100uF - 16v - Radial
C94 - 10uf - 25v - Radial
C102 - 10uf - 25v - Radial
C38 - 4.7nf - * - Ceramic
- Replace the 51pf cap with a 4.7nf cap to restore soft-touch RESTORE key function. This is included.

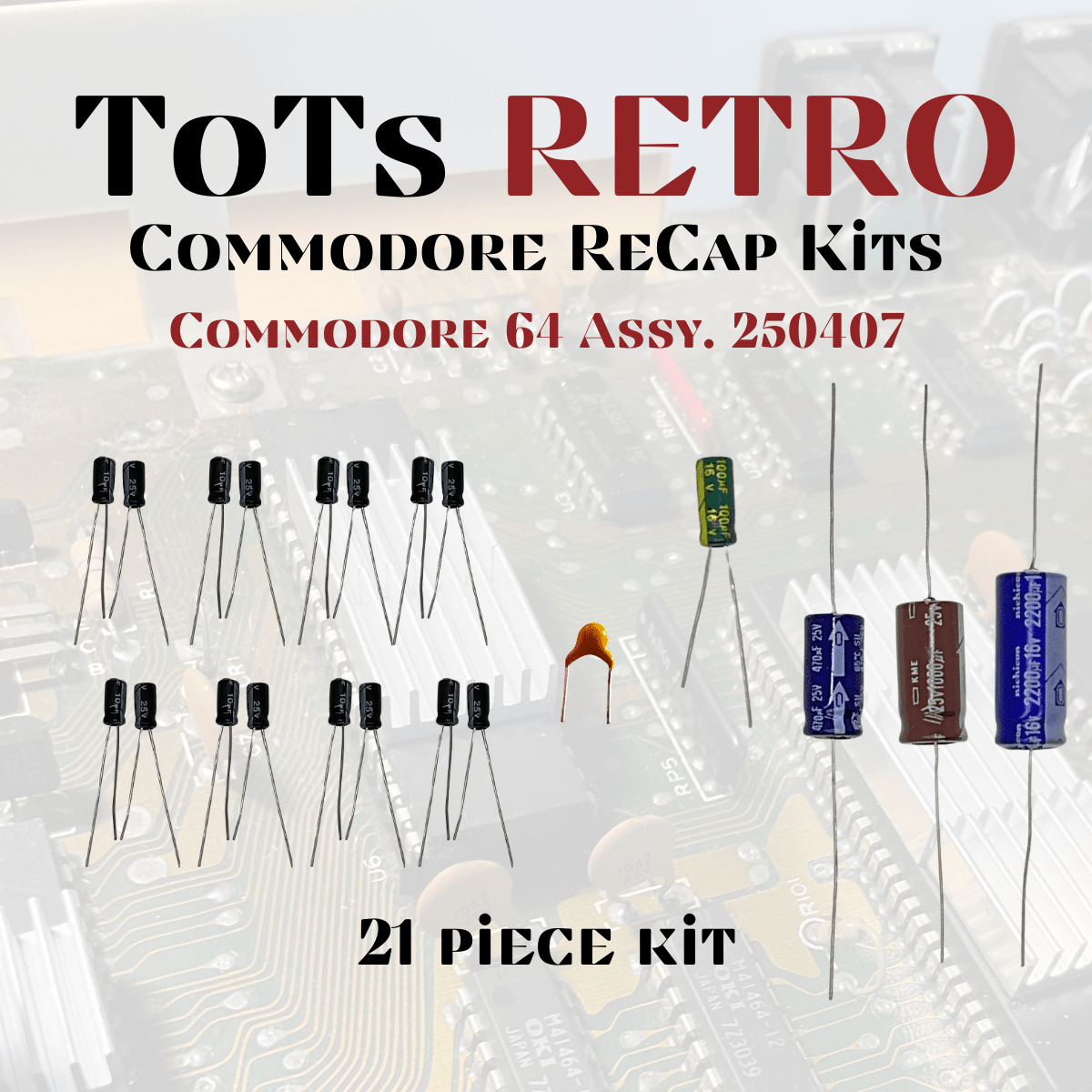

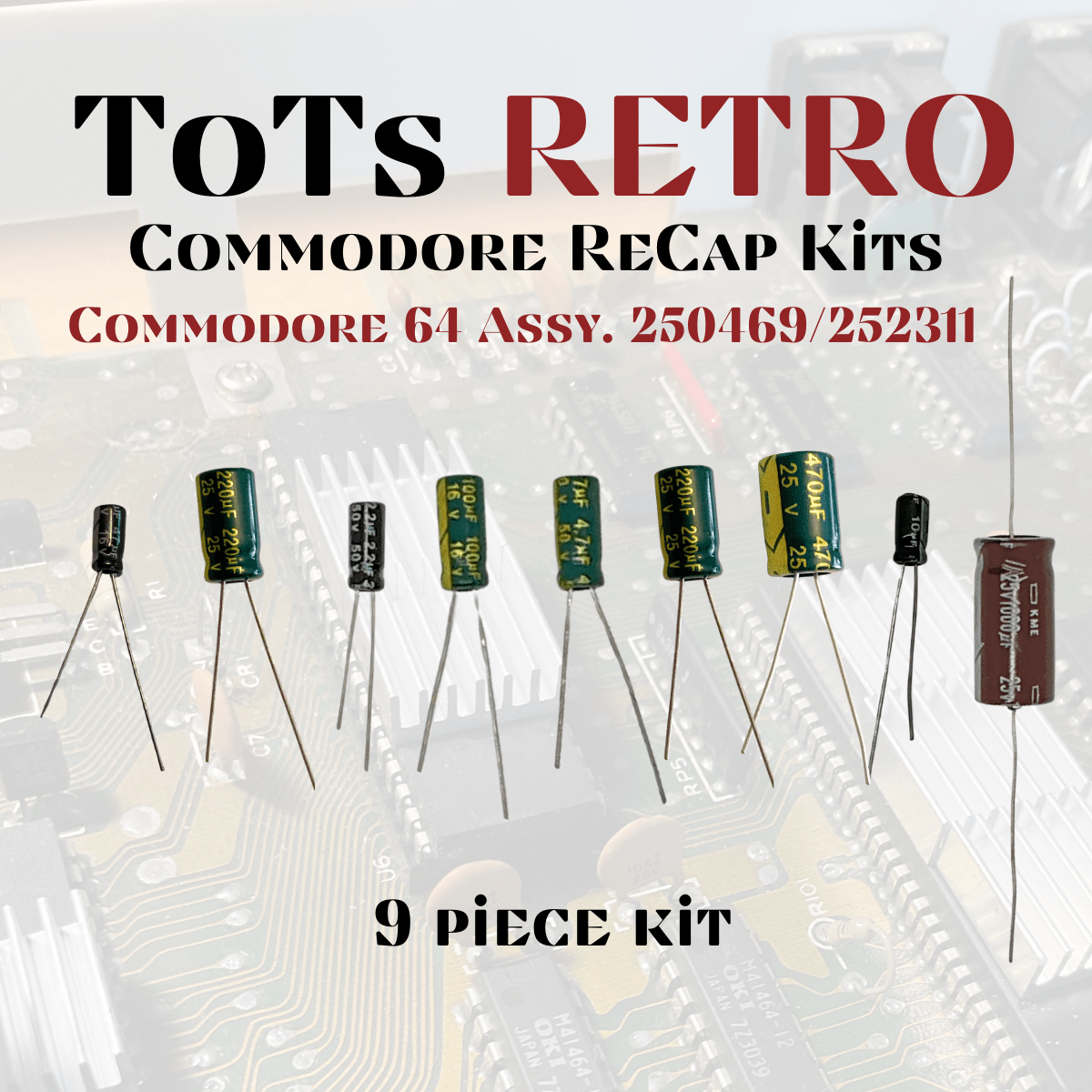

C64 CAPACITORS ASSY 250407
Cap - Value - Rating - Type
C8 - 10uf - 25v - Radial
C13 - 10uf - 25v - Radial
C14 - 10uf - 25v - Radial
C15 - 10uf - 25v - Radial
C17 - 10uf - 25v - Radial
C19 - 2200uF - 16v - Axial
C24 - 10uf - 25v - Radial
C34 - 10uf - 25v - Radial
C57 - 10uf - 25v - Radial
C62 - 10uf - 25v - Radial
C65 - 10uf - 25v - Radial
C88 - 1000uF - 25v - Axial
C90 - 470uF - 25v - Axial
C91 - 100uF - 16v - Radial
C94 - 10uf - 25v - Radial
C102 - 10uf - 25v - Radial
C107 - 10uf - 25v - Radial (Inside VIC-II shielded area)
C108 - 10uf - 25v - Radial (Inside VIC-II shielded area)
C38 - 4.7nf - * - Ceramic
- Replace the 51pf cap with a 4.7nf cap to restore soft-touch RESTORE key function. This is included.

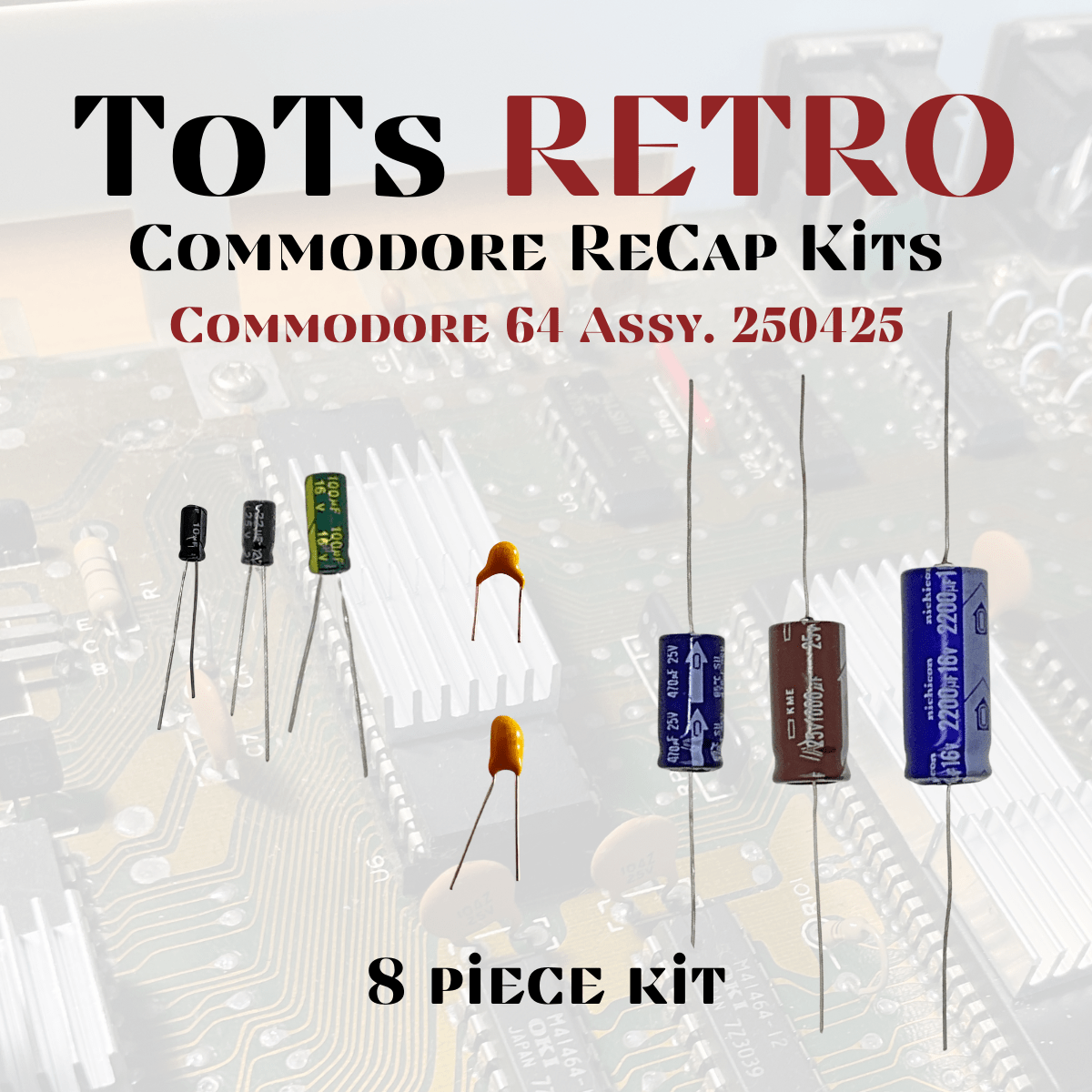

C64 CAPACITORS ASSY 250425
C13 - 10uf - 25v - Radial
C15 - 4.7uF - 16V - Tantalum
C19 - 2200uF - 16v - Axial
C24 - 22uf - 25v - Radial
C88 - 1000uF - 25v - Axial
C90 - 470uF - 25v - Axial
C91 - 100uF - 16v - Radial
C38 - 4.7nf - * - Ceramic
- Replace the 51pf cap with a 4.7nf cap to restore soft-touch RESTORE key function. This is included.

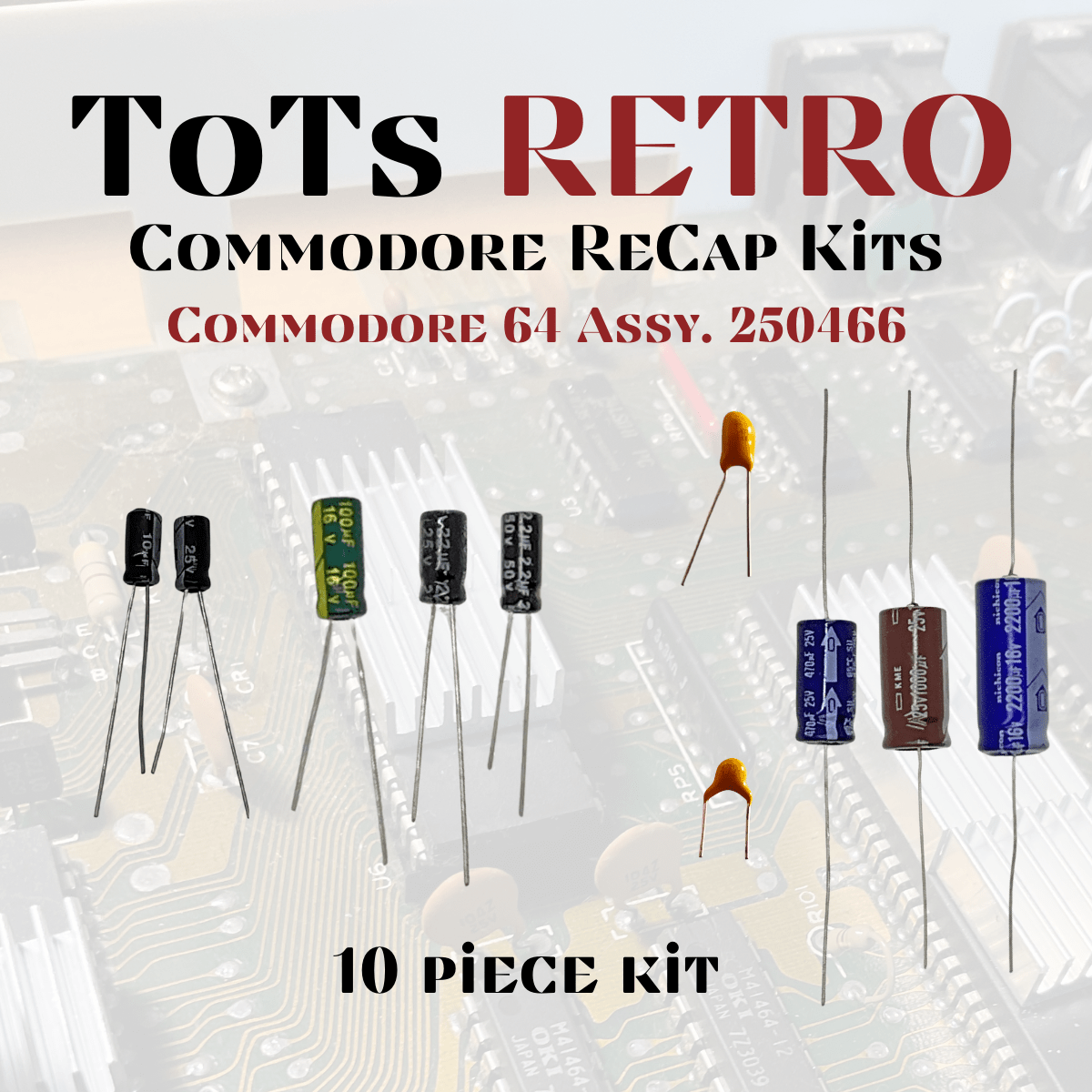

C64 CAPACITORS ASSY 250466
Cap - Value - Rating - Type
C13 - 10uF - 25V - Radial
C19 - 2200uF - 16V - Axial
C24 - 22uF - 25V - Radial
C88 - 1000uF - 25V - Axial
C90 - 470uF - 25V - Axial
C91 - 100uF - 16V - Radial
C200 - 2.2uF - 50V - Radial
C210 - 10uF - 25V - Radial
C38 - 4.7nf - * - Ceramic
- Replace the 51pf cap with a 4.7nf cap to restore soft-touch RESTORE key function. This is included.
C64 CAPACITORS ASSY 250469/252311
C36 - 47uf - 16v - Radial
C43 - 220uF - 16v - Radial
C44 - 2.2uf - 50v - Radial
C58 - 100uF - 16v - Radial
C59 - 4.7uF - 25v - Radial
C63 - 1000uF - 25v - Axial
C65 - 220uF - 25v - Radial
C66 - 470uf - 25v - Radial
C77 - 10uf - 25v - Radial

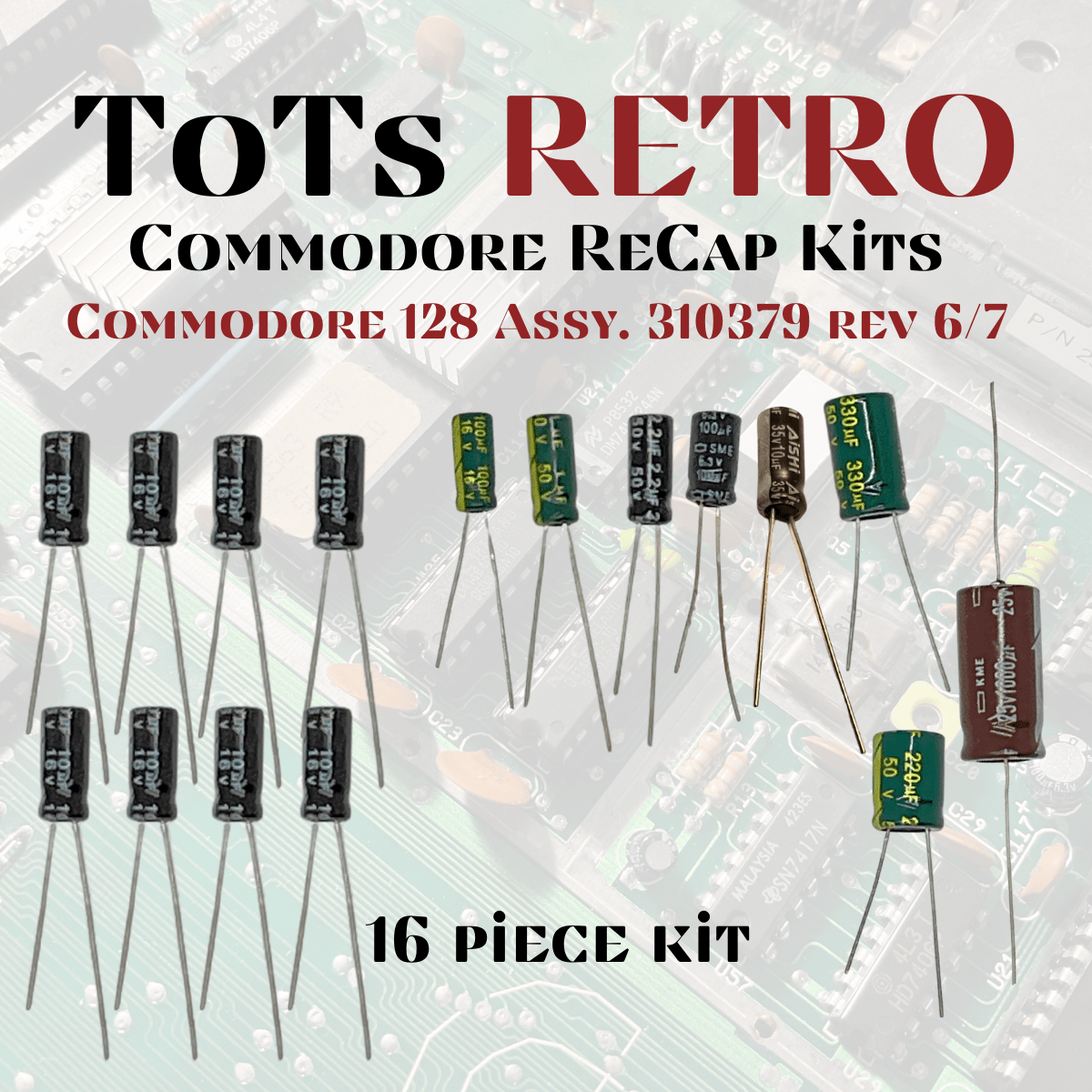

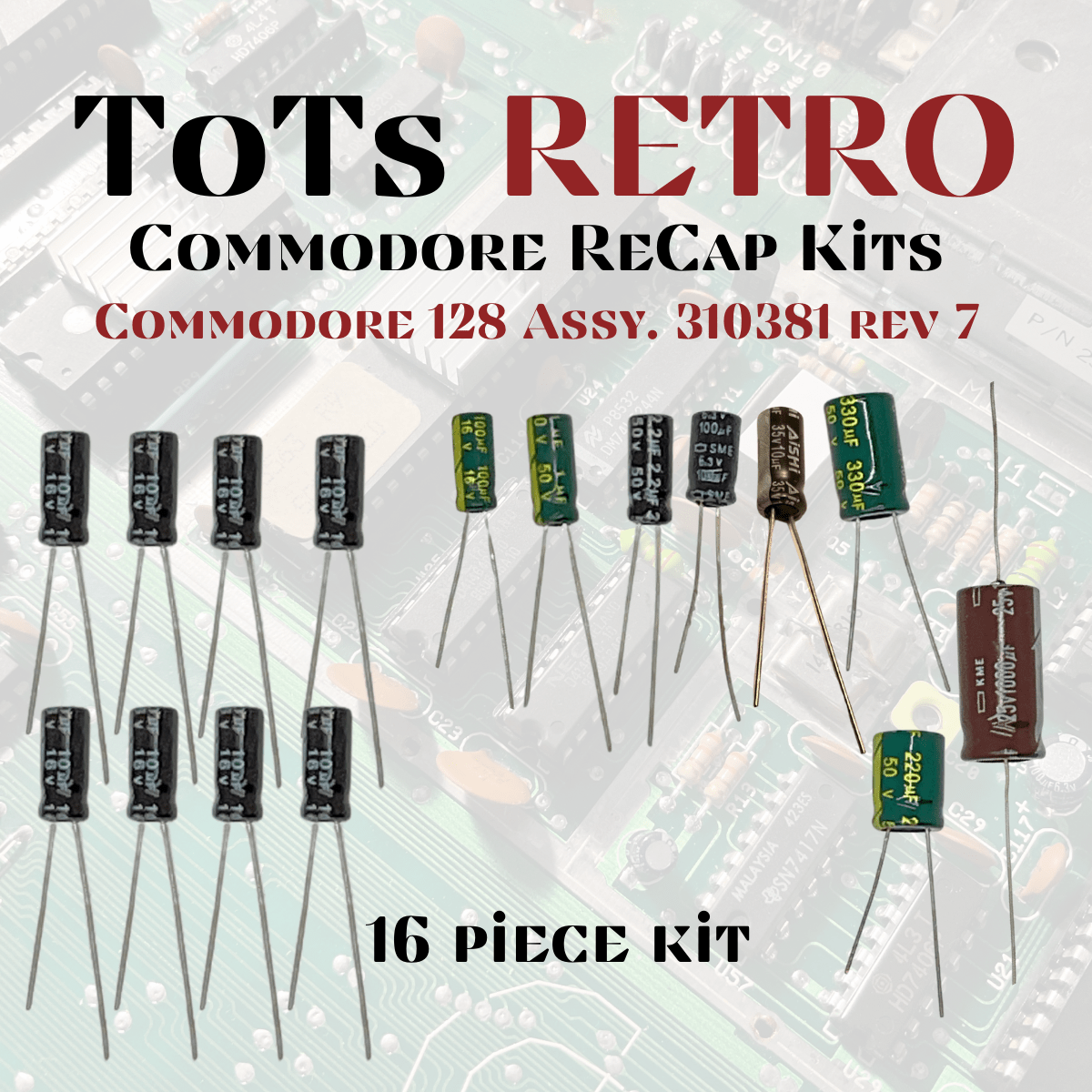

C128 Capacitors Assy 310379 REV6 + REV7
Cap - Value - Rating - Type
C61 - 10uf - 16v - Radial
C62 - 10uf - 16v - Radial
C63 - 10uf - 16v - Radial (for REV6)
C63 - 100uf - 6.3v - Radial (for REV7)
C69 - 10uf - 16v - Radial
C80 - 2.2uf - 25v - Radial
C85 - 10uf - 16v - Radial
C88 - 10uF - 16v - Radial
C91 - 1uf - 50v - Radial
C92 - 10uf - 16v - Radial
C101 - 10uf - 35v - Radial
C104 - 220uf - 50v - Radial
C105 - 330uf - 50v - Radial
C106 - 1000uf - 25v - Axial
C107 - 100uF - 16v - Radial
C111 - 10uF - 16v - Radial

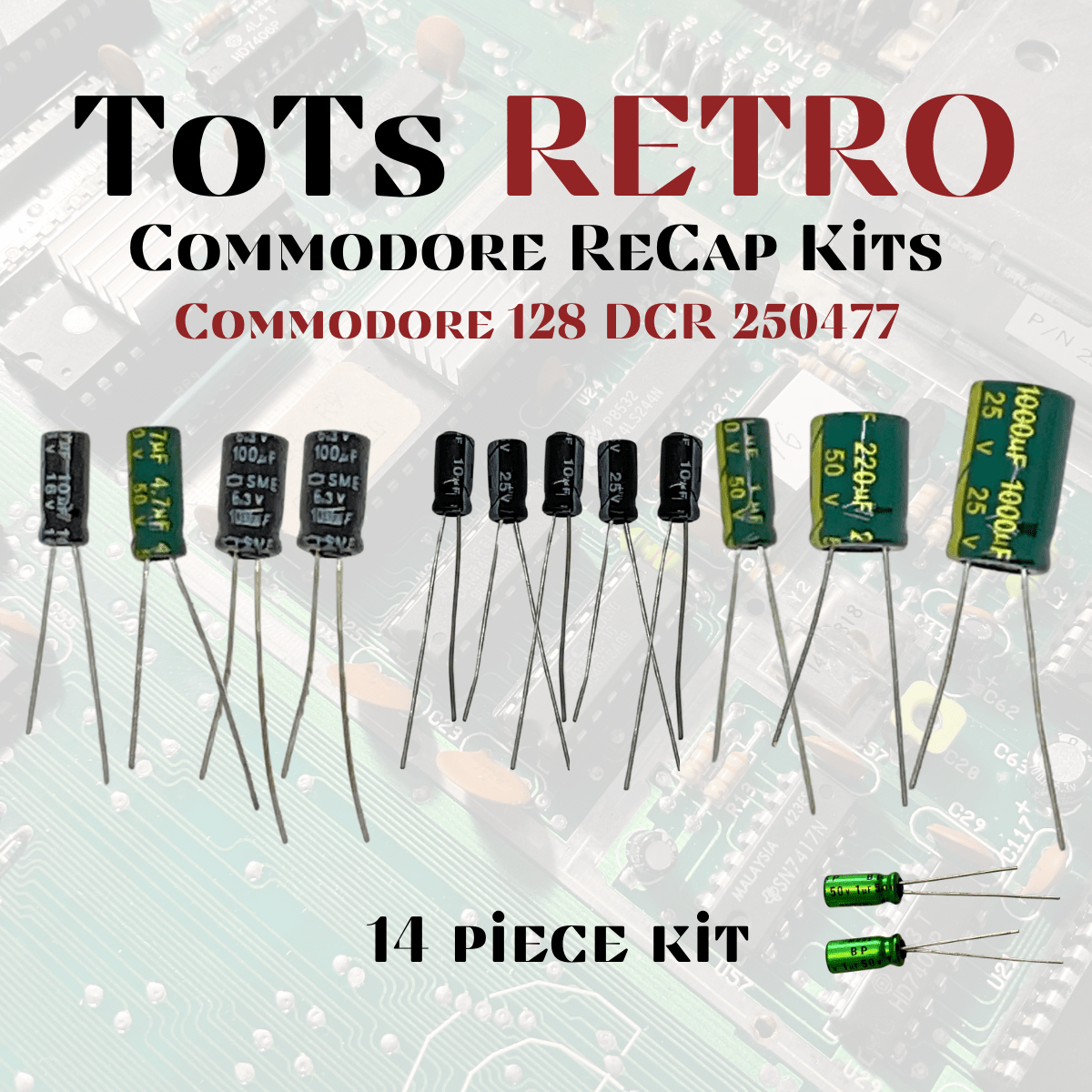

C128 DCR Capacitors Assy 250477
Cap - Value - Rating - Type
C35 - 4.7uf - 50v - Radial
C61 - 10uf - 16v - Radial
C63 - 100uf - 6.3v - Radial
C64 - 100uf - 6.3v - Radial
C69 - 10uf - 25v - Radial
C85 - 10uf - 25v - Radial
C88 - 1000uf - 25v - Radial
C91 - 1uf - 50v - Radial
C92 - 10uf - 25v - Radial
C100 - 220uf - 16v - Radial
C109 - 10uf - 25v - Radial
C115 - 10uf - 25v - Radial
C140 - 1uf - 50v - Radial - Non-Polar
C141 - 1uf - 50v - Radial - Non-Polar
If you have any questions, please do not hesitate to reach out.
