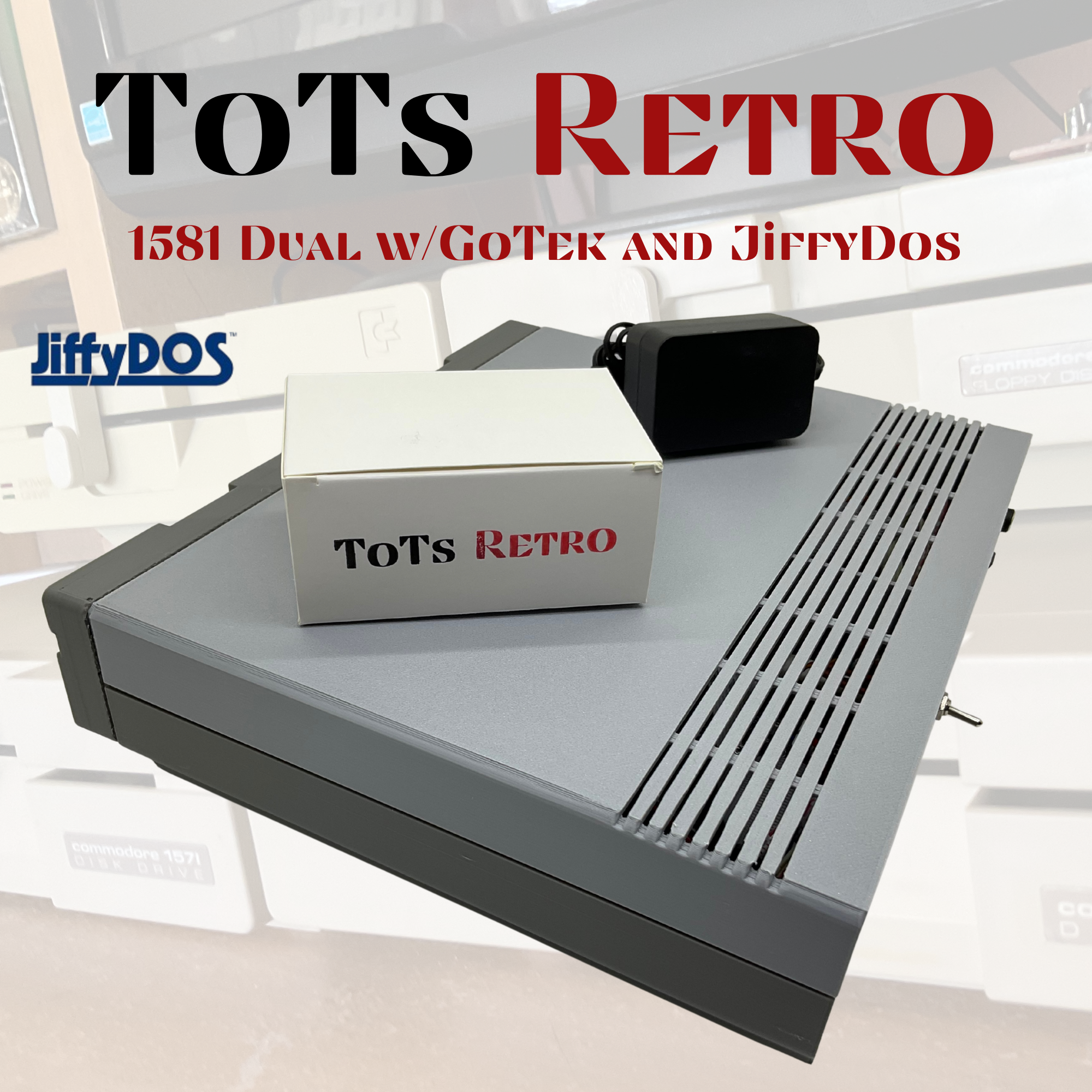

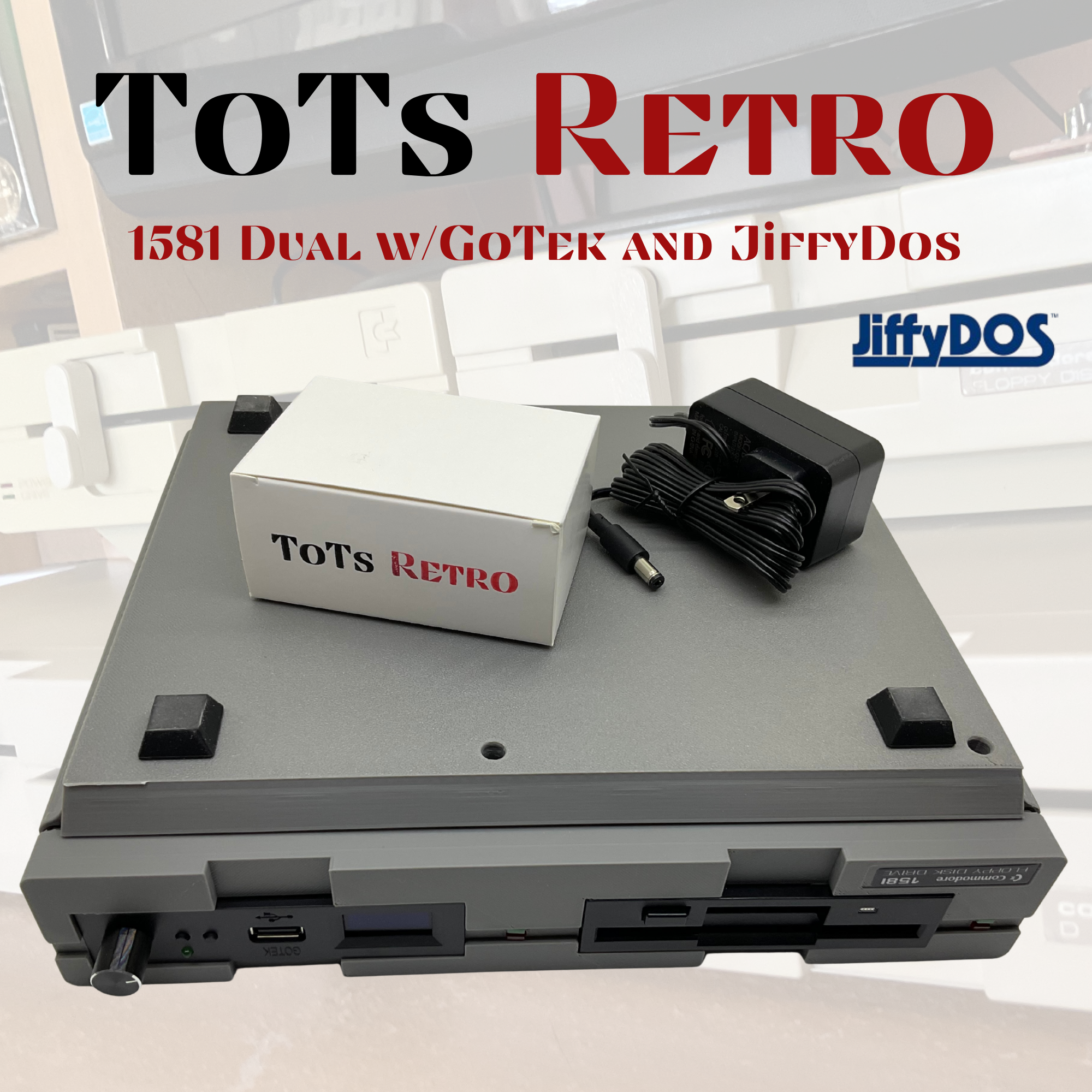

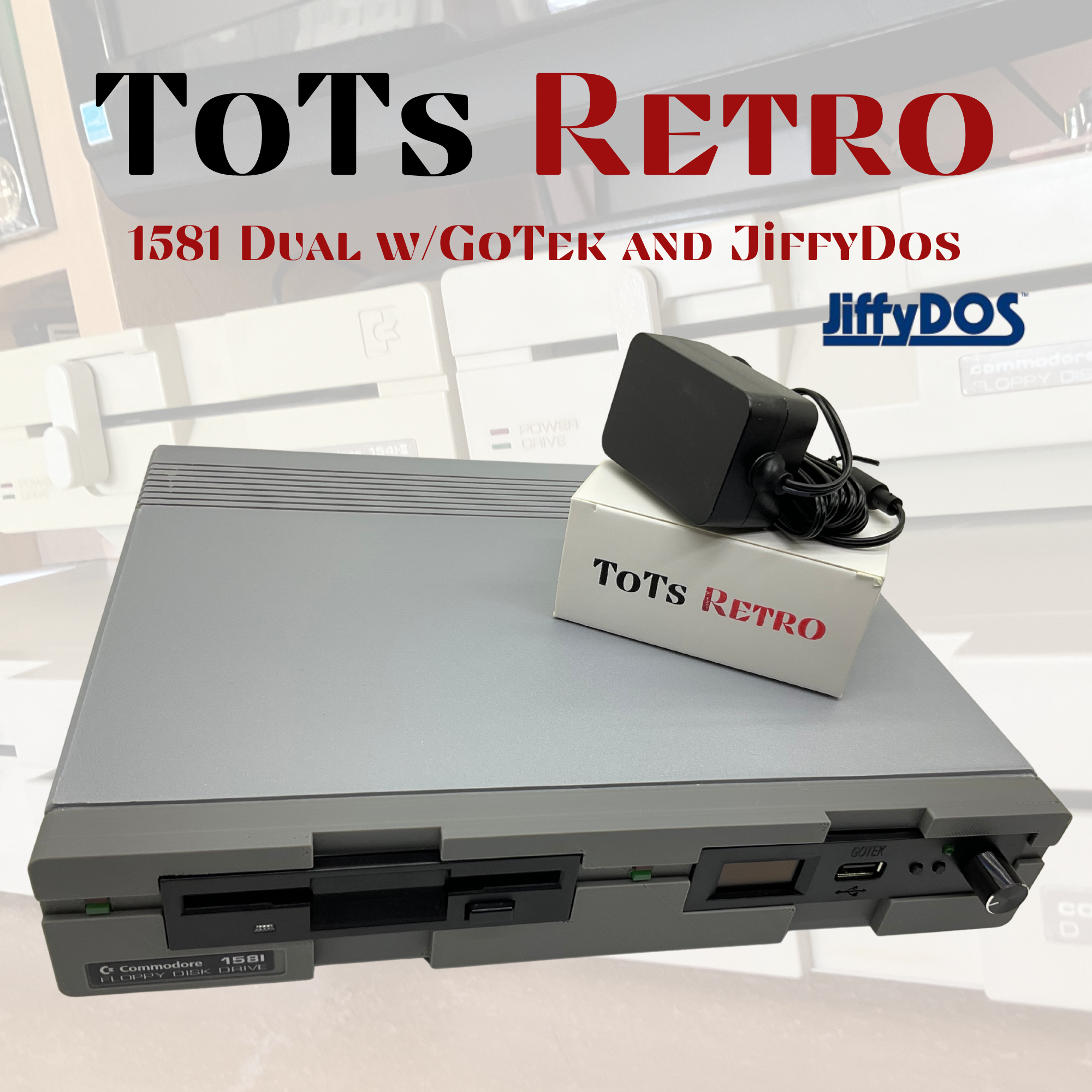

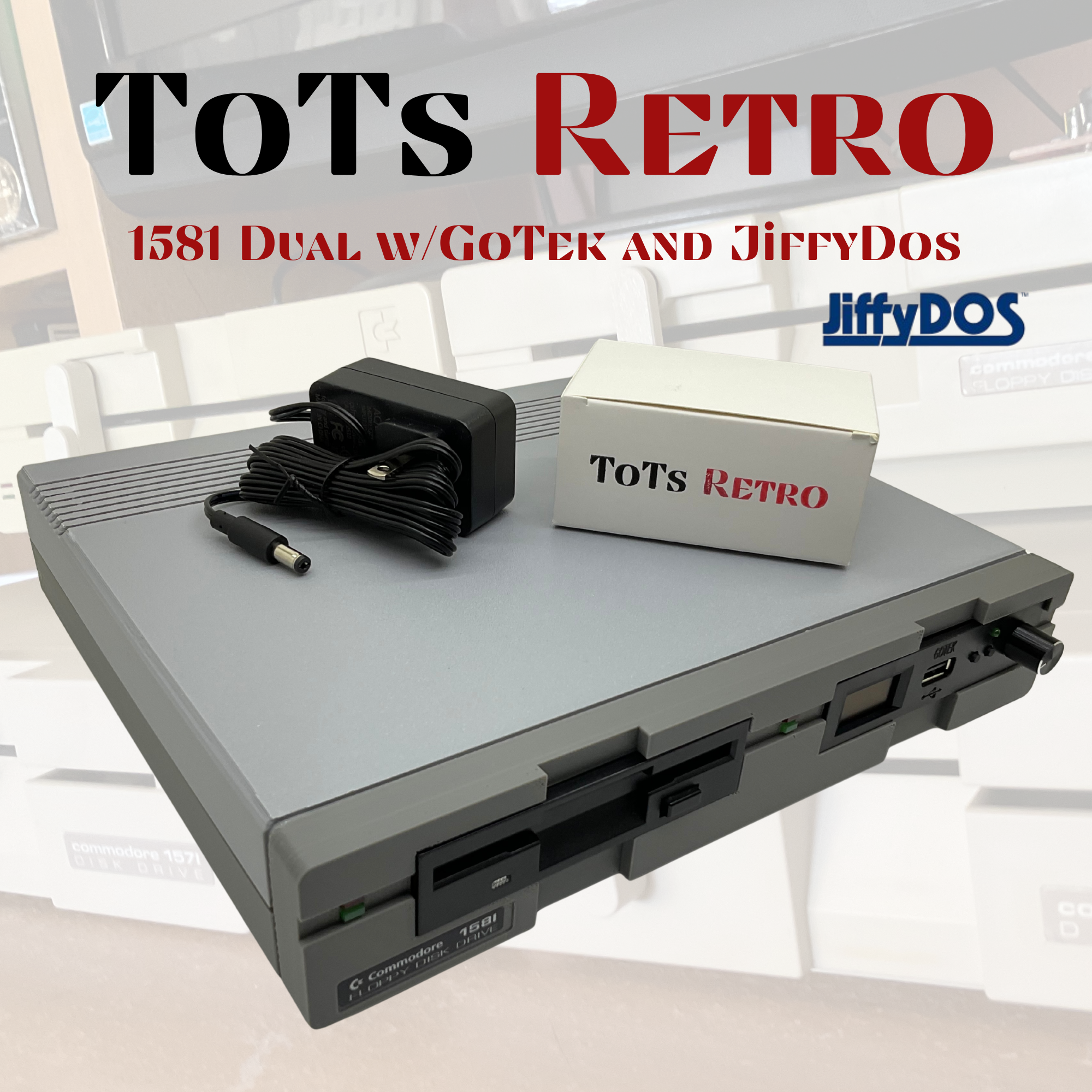

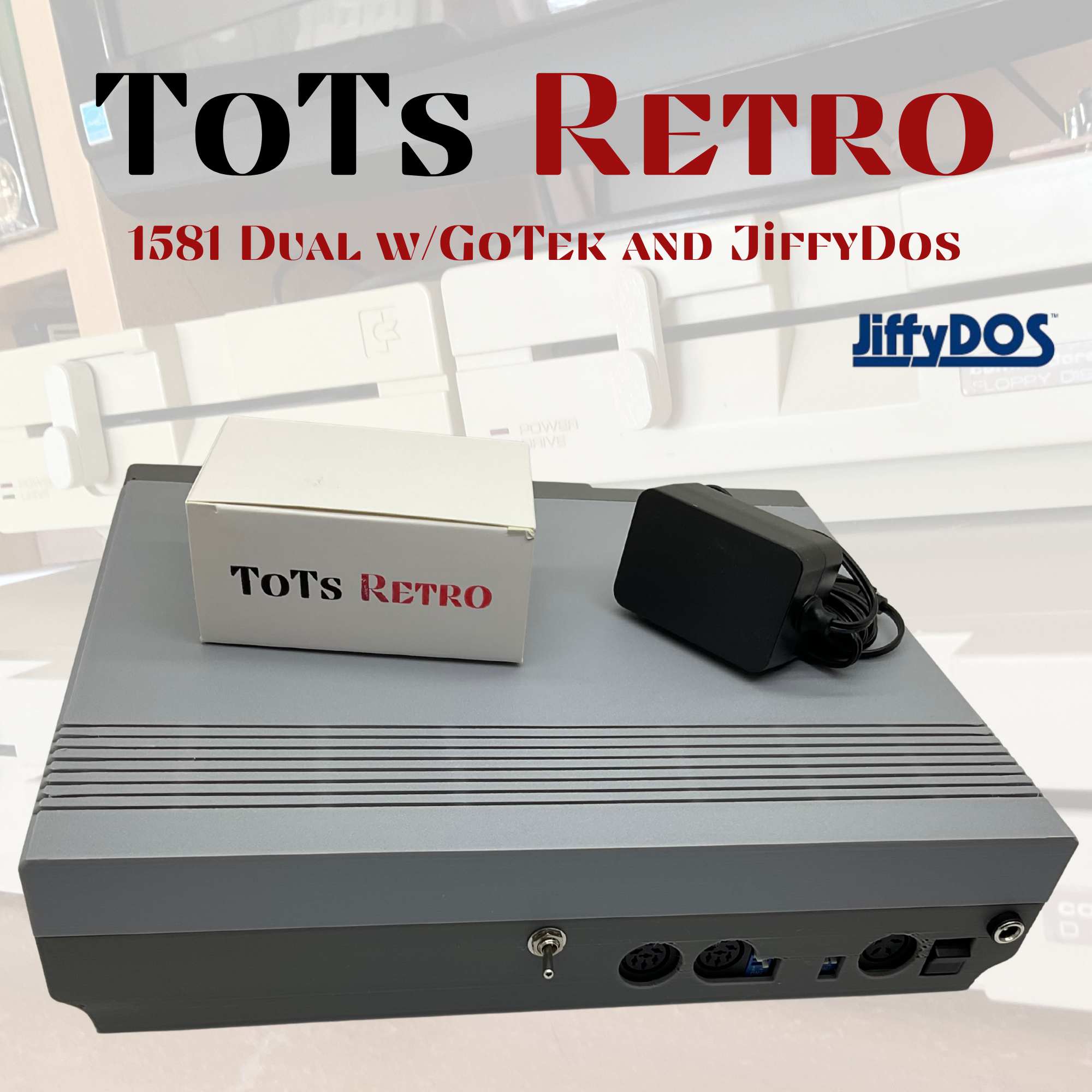

Commodore 1581 Dual Disk Drive Replica 3.5” W/ GoTek /Alternate Power & JD

Welcome to  ToTs RETRO I’m sure your going to love this one.

ToTs RETRO

If the unit sells out you can still place your order. Orders will be fulfilled in numerical order  These drives are all custom made by me… just for you.

Commodore 1581 Dual 3.5" Disk Drive, PC Style with Alternate Power Select and 2amp Power Supply Included.  Use the included easily available power supply or flip a switch and use a custom Commodore Power Supply (2 amp recommended ,not included), the Choice is yours.

This unit runs off a special 2 amp electronic 7805 type switching voltage regulator which is 85 to 90% energy efficient, which means... NO HEAT allowing for super cool operation.  Each Drive pulls about .75 amps, together 1.5amps max, well under the 2 amps.

As chips get harder and harder to procure, I will be including updated modern replacements. Like the new VR-177x from vRETRO, It is a new modern replacement for the WD1770 chip, which of course runs super efficient and has been shown to be 100% compatible.  If you would like to purchase this chip for your owns drives, It is also available for purchase separately HERE.

As modern chips become available I will use those as replacements, helping to assure your investment will last you a very long time.

Includes Complimentary 1581 Label

Includes Power Brick 9v 2amp Switching Power Supply for 115-120volts

Includes JIFFYDOS!!! An authentic Fully Licensed JiffyDos 6.02 1581 ROM

you can use the drive with or without JiffyDos.  IF you have JiffyDos now, you will benefit greatly with its Warp Speed Enhancement.

For Use with Commodore 64 64c Commodore 128 128D 128DCR

Customers are Talking, here is what they're saying.....

Hi,
Received the 1581 disk drive today and is in VGC.
I`ve tested the drive for around 2hrs and is working perfectly .
May I Congratulate you on the high quality of the drive and the service provided.
I will leave you a very good feedback on EBAY.
Regards
DC

I want to say Thank you for your kind words and support. I hope you continue to enjoy your drive !!!

Features

Newly built by ToTs RETRO with all New Components and New Old Stock Original Parts,   with 1581 JiffyDOS ROM, WD 1770 controller or a NEW Alternative-lower power chip, 8k Ram, Rockwell 6502 CPU  processor running at 2mhz or more and the Commodore MOS 8520A chip or New Alternative . All chips and logic chips tested before shipping and fully socketed.

I use the COREi64 enhanced replica board designed by Thomas C. to build this, now exclusively available only at ToTs RETRO. The Case is an original COREi64 3D Design, also now exclusively available only at ToTs RETRO.

Comes with a 90 day warranty (warranty void if closure seals are broken).   All units are fully tested and sent working to you.

You’ll receive:

A high quality over 28 hours to make this 3D Printed Case in 3 Main Parts printed with PLA  30-40% infill to make it sturdy and durable.

Internal Drive Mount Plate x2

High Quality Case w/Brass Inserts for all Screws.

Amiga Modified or (PC Adapter Board) Internal 3.5 inch Floppy Drive Recapped lubed installed and ready to go.

Read and Writes Double Sided Double Density 3.5” Floppies 2DD 800k

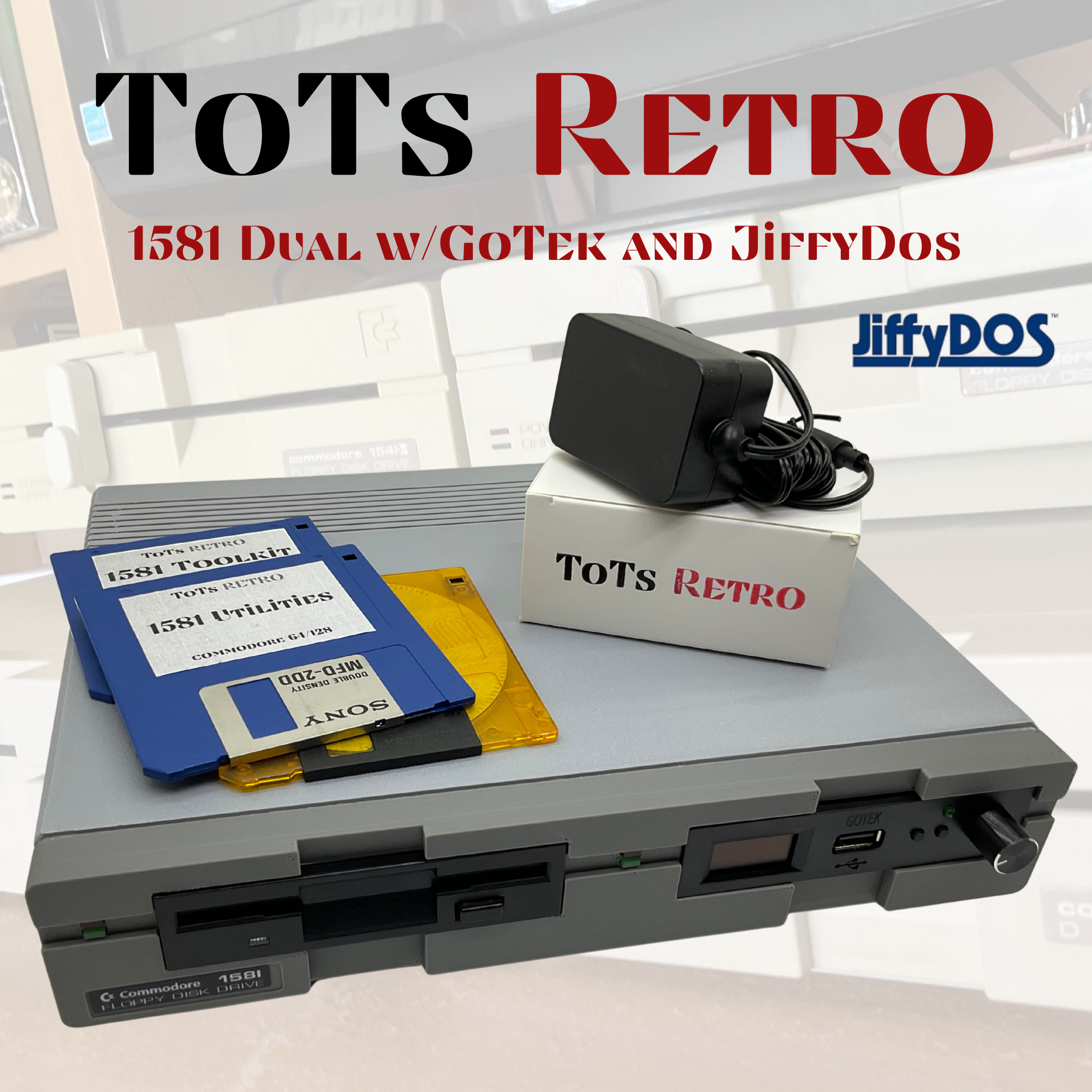

Includes 3 floppies to get you started  1581 ToolKit, 1581 Utilities/Demo and your very own ToTs RETRO Blank Pre Formatted Commodore disk, ready to use in your commodore series computers.

GoTek Drive with USB Card w/valuable software to get you started.

Weight ~4lbs

Dimensions: 10.5 x 9 x 2.75 in

Color: Retro Dual Grey

Comes with a Switching 9v 2 Amp power supply, No serial Cables are included, you must supply your own.  Warranty covers all components inside the disk drive. Does not cover damage from falling, dropping  , water or flooding, improper use or over voltage from poor PSU.  I recommend you use a new verified power supply That can handle at least 1.5-2amps.  All components have been tested and working great before they ship to you. The 1581 Dual Drive is ready for use out of the box.  Drive will be preconfigured 8 and 9 respectfully.

Any questions please feel free to contact me.

I also offer repair services if you ever need. Shipping for any warranty service to and from is paid by buyer. Your purchase is guaranteed with a 30 day money back guarantee. All items and parts must be returned in its new pristine condition to be eligible for a refund.
