Apple Macintosh Logic Board Recap Kits, Mac SE, Mac SE30, Macintosh II Series

$11.49
Unit price per

Shipping calculated at checkout.

Macintosh Logic Board Re-Cap Upgrade Kits

For use with many Apple Macintosh computers, such as Macintosh SE, Mac SE/30, Macintosh II Series, including Rev IIa, IIb, IIx, IIcx, IIfx, IIsi, IIvi and IIvx

Offered by: ToTs RETRO

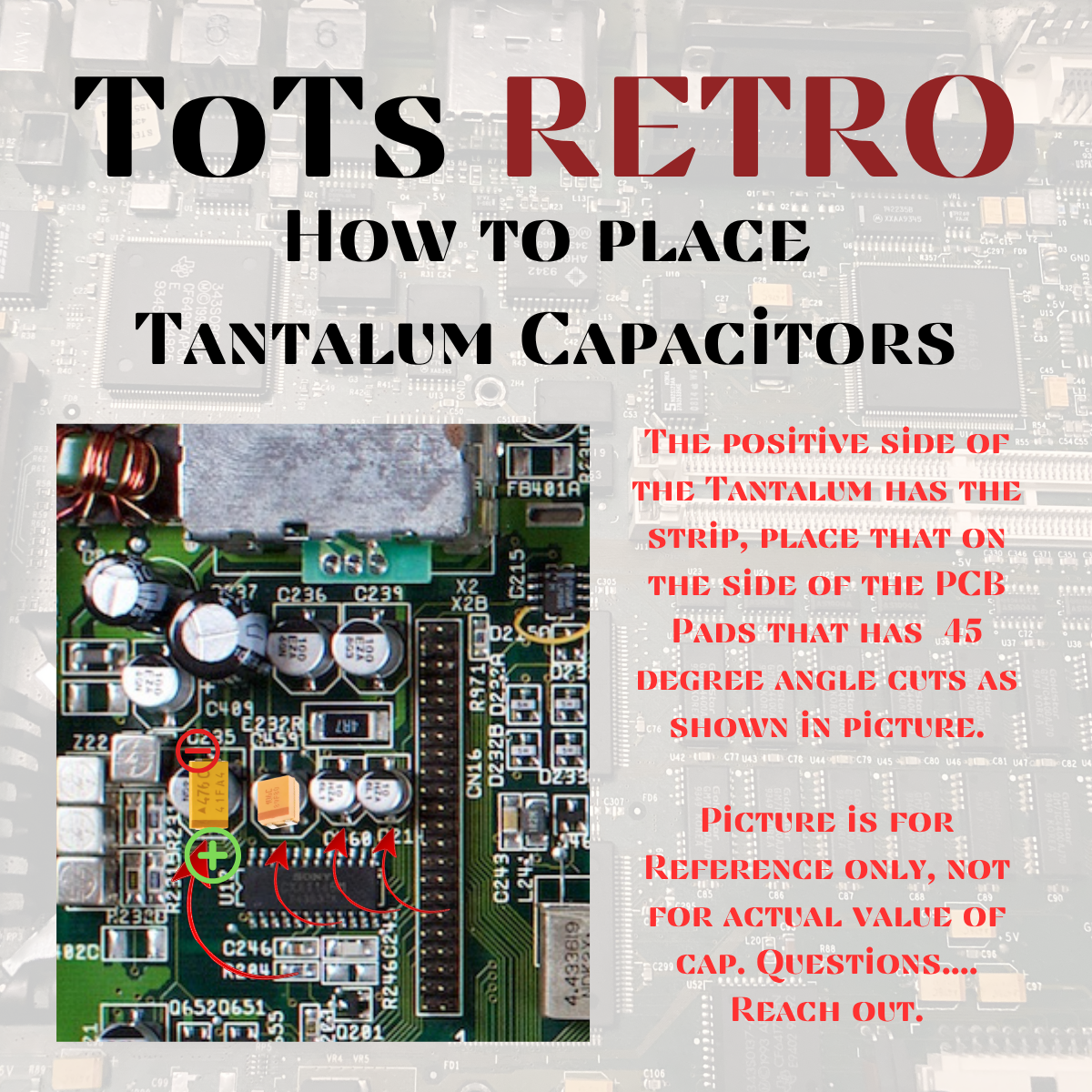

Axial and Tantalum Capacitor Replacements for your Retro Macs. When replacing Tantalum capacitors the Black Line on the Yellow Tantalum Capacitor is the positive side. Important: Place the Black Line side over the Positive side of the Surface Mount Capacitor Pads. For Axial Capacitors, they are marked with a Band with An Arrow pointing toward the Negative Terminal

Installing in reverse can cause damage to your Computer, blown chips or even a fire. If your not comfortable performing the task, please, leave it to Professionals. For those Brave enough to venture forward, please read on....

These kits includes the exact amount of Axial and Tantalum Capacitors necessary to recap your logic board. Each Kit Varies. You must provide your own tools and equipment to perform the task.

I do not include soldering instructions or board instruction, some knowledge is required to perform this job, do some research before tackling the task. Make a map (take pictures) of the Caps that you remove, it's values and where they went. This will help you in remembering where they go. Take your time, do not force the caps off or on. Clean the mount pads. Be gentle to your Retro Mac and lets make it last another 30 years.

For Photos of Logic Boards and other info head over to MacDat for references. I would post the link, but they get removed, so use your favorite search engine and type in MacDat net

ToTs RETRO is not affiliated with MacDat, I personally think it is a really nice and usefule website, with lots of great information on Retro Macs, like logic board photos, repair manuals and more..

All Caps come sealed in a bag, with the values and quantities so they are easily identifiable.

Macintosh SE / SE FDHD / SE SuperDrive

10x 33uF 16v Axial Electrolytic

1x 1uF 50v Axial Electrolytic

Macintosh SE30

10x 47uF 16v Tantalum Capacitor

1x 1uF 50v Tantalum Capacitor

1x 470uF 16v Axial Electrolytic

1x 220uF 16v Axial Electrolytic

Macintosh II Rev A Logic Board
