Macintosh Logic Board Re-Cap Upgrade Kits

For use with many Apple Macintosh computers, such as Macintosh Classic, Mac Classic II, Mac Color Classic, Macintosh LC, Macintosh Performa, Macintosh Quadra, Macintosh Centris and various Apple PowerMacs

Offered by: ToTs RETRO

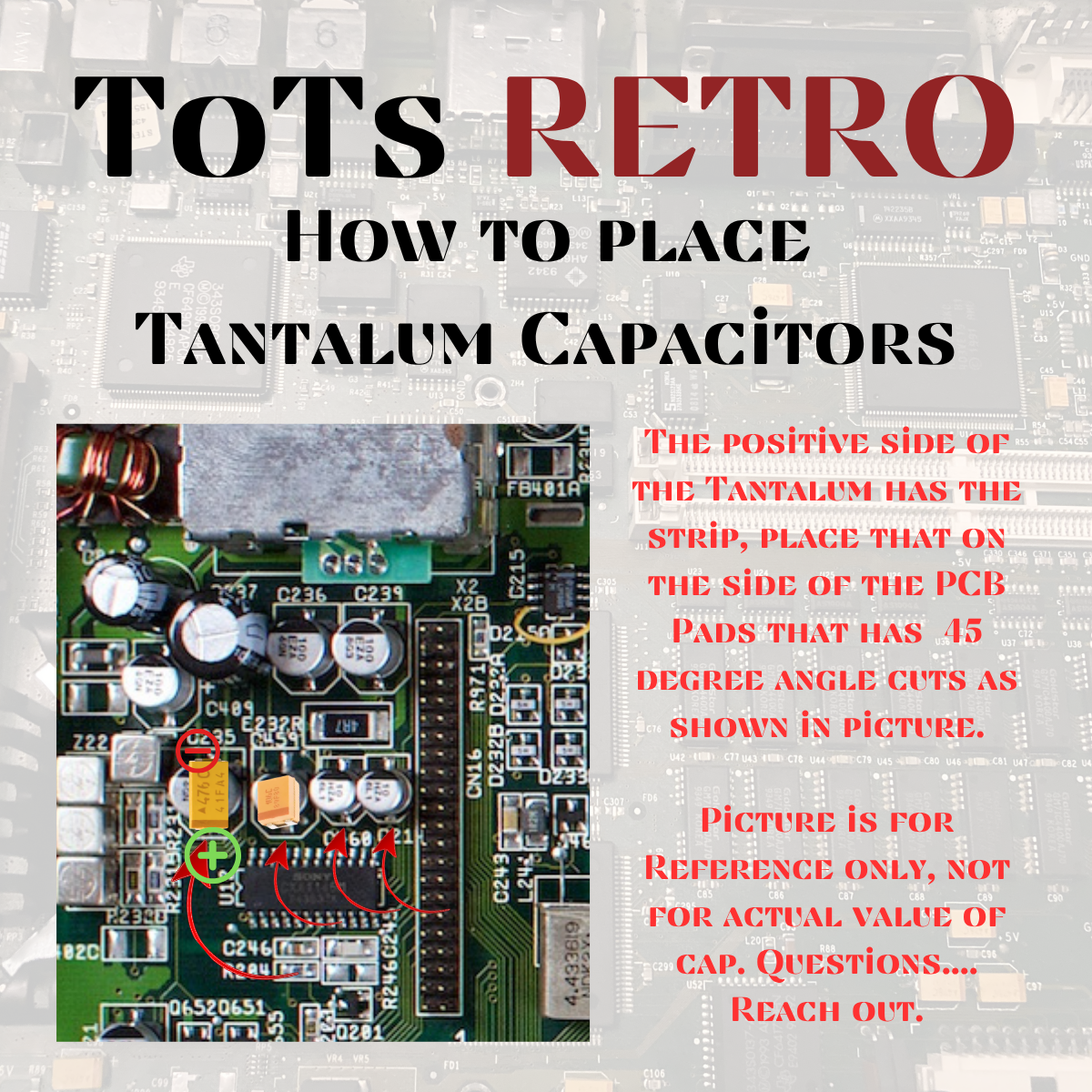

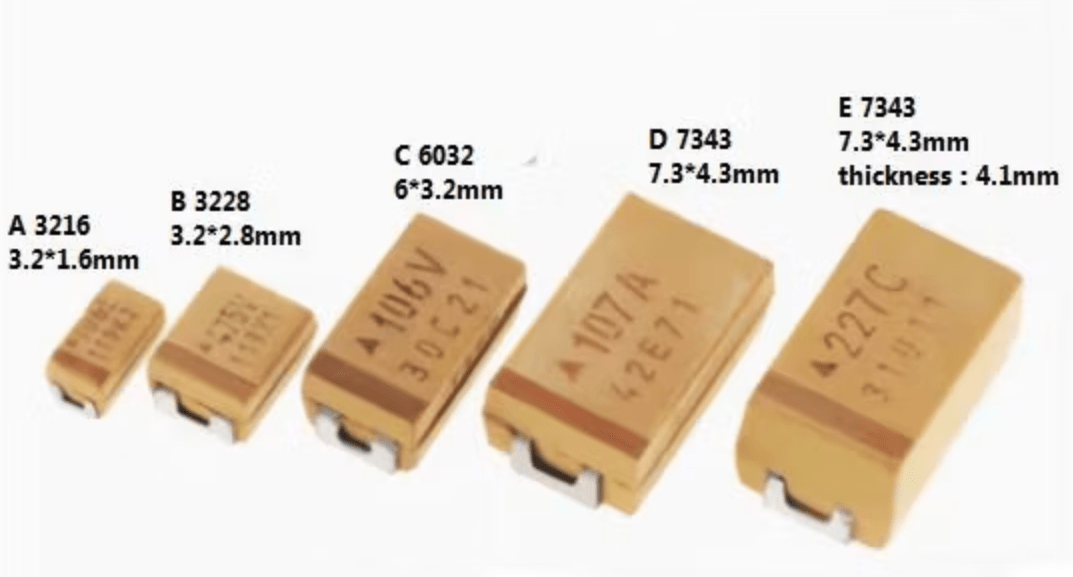

I'm offering these Tantalum Capacitor Replacements as a maintenance free, no leak, set and forget upgrade for your Retro Macs.  When replacing capacitors the Black Line on the Yellow Tantalum Capacitor is the positive side.  Important: Place the Black Line side over the Positive side of the Surface Mount Capacitor Pads.

Installing in reverse can cause damage to your Computer, blown chips or even a fire.  If your not comfortable performing the task, please, leave it to Professionals.



I also offer Replacement service if you don't want to do them yourself.  Currently servicing these Macs: Mac Classic, Classic II, Mac Color Classic, Mac Color Classic II, LC 520/550, LC 575, Performa 575 and PowerMac 6100 and it's variants. For more info contact me. Service is $59.99 not including shipping to and from. Send Logic Board Only. The $59.99 Price is for cap replacement only not for a repair, if after cap replacement is done and your LB is not functioning I will contact you for further steps.

If your ready to do the replacement yourself below you will find all the Macs I currently have kits for. The kits includes the exact amount Tantalum Capacitors necessary to recap your logic board. Each Kit VariesYou must provide your own tools and equipment to perform the task.

I do not include soldering instructions or board instruction, some knowledge is required to perform this job, do some research before tackling the task. Make a map (take pictures) of the Caps that you remove, it's values and where they went.  This will help you in remembering where they go.  Take your time, do not force the caps off or on. Clean the mount pads.  Be gentle to your Retro Mac.

For Photos of Logic Boards and other info head over to MacDat.net for references.

ToTs RETRO is not affiliated with MacDat, I personally think it is a really nice website, with lots of great information on Retro Macs



Macintosh Classic Logic Board

7x 47uF 16v

1x 1uF 50v



Macintosh Classic II Logic Board

Logic Board Rev A, 13 Caps

3x 47uF 16v

8x 10uF 16 v

2x 1uF 50v

Logic Board Rev B, 17 Caps

3x 47uF 16v

12x 10uF 16v

2x 1uF 50v



Macintosh Color Classic I and II

2x 100uF 6.3v

6x 47uF 16v

1x 10uF 16v

Microphone Board

2x 4.7uF 25v



Macintosh LC

1x 100uF 6.3v

5x 47uF 16v

8x 10uF 16v

1x 1uF 50v



Macintosh LC II

1x 100uF 6.3v

5x 47uF 16v

10x 10uF 16v

1x 1uF 50v



Macintosh LC III

1x 100uF 6.3v

5x 47uF 16v

5x 10uF 16v



Macintosh LC 475/Quadra 605

2x 100uF 6.3v

9x 47uF 16v



Macintosh LC 520/550

2x 100uF 6.3v

6x 47uf 16v

1x 10uF 50v



Mac LC/Performa 575

2x 100uF 6.3v

10x 47uf 16v



Mac LC 580/630 Quadra 630

3x 100uF 6.3v

6x 47uF 16v



Mac Centris/Quadra 610

10x 47uF 16v



Mac Quadra 660 AV

11x 47uF 16v

2x 10uF 16v



Mac Quadra 840av

13x 47uF 16v

2x 10uF 16v



Power Macintosh 5400/6400/6360

4x 100uF 6.3v

11x 47uF 16v



Power Macintosh 6100

11x 47uF 16v



Power Macintosh 7100

1x 100uF 6.3v

25x 47uF 16v



Power Macintosh 7500/7600/8500

10x 47uF 16v

7x 10uF 16v

5x 4.7uf 25v



Power Macintosh 8100

13x 47uF 16v





ALL units are tested before being Shipped and come ready to install.

If you have any questions, please do not hesitate to reach out.
