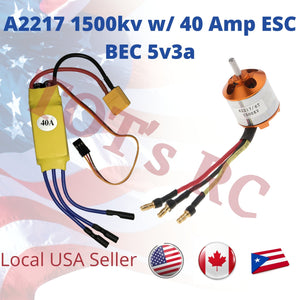

A2217 1100KV - 1500kv | 40a ESC 4s ESC 40amp XT60 | Deans | rc plane FPV Wing
Here we have a ESC and Motor Combo 40 Amp Esc XT60 or Deans with a A2217 1100kv or 1500kv brushless motor. This pack comes with power connections and bannana plugs 3.5mm... everything presoldered all you have to do is install. Any questions please ask before purchasing and remember, all purchases help to support this local USA family business. Thank You.
Hi folks, this hobby is one of my passions. As I love to build planes and I love to do it economically, I’m brining another option to the catalog. This is a very reliable affordable option to get your hand on. I truly hope you enjoy the product and thank you for supporting a small family business.
I’ve used this ESC in my scratch build corsairs, spitfires, sopwiths, tiger moths, yaks 55 and even in my foam board F22 raptor this ESC is a staple as well as the 30A esc in my other listing. The 40A ESC gives you a lot of extra power and comfortable range in prop usage . You don't have to wait two months to get your esc or pay a ton of money. These ship quickly and usually you receive them within a week.
40A Brushless ESC Drone Airplanes Parts Components Accessories Speed Controller Motor RC Toys FPV Durable Quadcopter Helicopter, fixed wing, rc plane, aircraft, sail boat
Don't Forget to Calibrate your Throttle with your new ESC's
also... Wire and Extension Kits Available now!!!
Compatible with Lipo and NiMH battery.
Auto Timing to be suitable for different brushless motors.
Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Specifications:
Color: Yellow
Types: long
Current: 40A
Output capacity: continuous current 40A, short-time current 50A (not more than 10 seconds)
Power input: 2-4 lithium batteries(Not Included)
BEC output: 5V@3A (linear regulator mode - linear mode)
Maximum speed: 210,000 rpm for 2-pole motor, 7000 rpm for 6-pole motor, 35,000 rpm for 12-pole motor
Size: (Approx) 68x25x8mm
About the Motor Options
Metal A2217 1100KV Brushless Motor for Fixed Wing UAV 10'' Propeller 1070
This is a perfect motor for scratch builders, building 4ft (1000-1400mm) wingspan aviation model rc planes. I've used this in my scratch build F4U Corsair, Spitfire, P-51 Mustang, P-38 I even used this motor size in a scratch build Super Cub, excellent performance. Would recommend a 40 Amp Esc to use with this motor.
Description:
1 Piece Metal A2217 1100KV Brushless Motor, Shaft Diameter 4.0mm
Motor Suitable for 10inch Propellers, such as 1070, 1050, 1060 etc.
Professional for Fixed Wing / RC Boat Accessories Parts.
High precision for security and stability.
Material: Metal
Specification:
Shaft Diameter 4.0mm
KV: 1100
Size Chart:
Size: approx. 27.8x32mm / 1.09x1.26inch.
Package Includes:
1 Set A2217 1100KV Brushless Motor
Product Name: A2217 KV1100 8T external brushless motor
Dimensions: 27.8*32mm
Weight: 68 grams
Output shaft diameter: 4.0mm
KV value: 1100KV
Test Data:
GWS1060HD:
11V 19.5A 8450 rpm, thrust 1012 g
10.5V 17.4A 8220 rpm, thrust 953 grams
10V 17.2 8030 turn, thrust 903 g
9.5V 15.9 7730 turn, thrust 830 grams
Metal A2217 1500KV Brushless Motor for Fixed Wing UAV 9'' Propeller
This is a perfect motor for scratch builders, building 4ft (1000-1400mm and others) wingspan aviation model rc planes. I've used this in my scratch build F4U Corsair, Spitfire, P-51 Mustang, P-38 I even used this motor size in a scratch build Super Cub, excellent performance. Would recommend a 40 Amp Esc to use with this motor.
Description:
1 Piece Metal A2217 1500KV Brushless Motor, Shaft Diameter 4.0mm
Motor Suitable for 8-9 inch Propellers
Professional for Fixed Wing / RC Boat Accessories Parts.
High precision for security and stability.
Material: Metal
Specification:
Shaft Diameter 4.0mm
KV: 1500
Size Chart:
Size: approx. 27.8x32mm / 1.09x1.26inch.
Package Includes:
1 Set A2217 1500KV Brushless Motor?
Product Name: A2217 KV1500 6T external brushless motor
Dimensions: 27.8*32mm
Weight: 68 grams
Output shaft diameter: 4.0mm
KV value: 1500KV
Can be used on some rc airboats, rc helicopters, rc motorcycles electronic speed control for rc vehicle or rc airship rc drone
