A2212 1000kv-1400kv | 30 AMP ESC 4x MG90s Mini Servo 3s ESC 30a ESC Props

  • $27.49
    Unit price per
Shipping calculated at checkout.


Scratch Build Kit B and B+ Compatible


Each Kit comes with NEW PROPs 9x6CCW and 9x6CW
For both 1000kv and 1400kv Kits

Bonus: free Control Horns while supplies last

Don't Forget your Wire Kit, Extra Props and Flight Stabilizer


Here we have basically two different sets. The A2212 1000kv (B Pack Equivalent)
motor is great for Trainers, Scale, FPV Wings and planes with wingspan of 700
to 1200mm. I've used this motor on Simple Cub, Spitfire, Mustang, Baby Blender,
Yak 55 Profile, Sopwith Profile Bi-Plane, great performance.

here is some video of this kit in action



The A2212 1400kv (Super B Pack Equivalent) motor is the motor choice you want for
sport flying, 3d (Profile Yak 55...etc) and warbirds. This really puts the pep
in those nice scratch build basic warbirds.

These motors would be comparable to the B Pack, and I offer these as a lower
cost alternative for budget minded individuals. If You love the hobby, but money
is tight, well, I've got you covered with this offering here.

1000kv Motor kit includes a heavy duty nice Gemfan Prop 9x6
1400kv Motor kit includes Gemfan Prop 9x6 makes a nice smooth combo


The Scratch Build Kits, come with the upgraded extremely durable and reliable MG90s
Metal Gear Servos. These weigh 14 grams and are very strong. Perfect for beginners of for lasting builds.




Calibrate your Throttle with your new ESC's




The ESC is a Standard 30 Amp ESC with a BEC of 5v and 2 Amps,
enough for most 3 to 4 channel planes. If you are running more than 4 servos,
consider running a separate BEC for your set up. These 30 Amp ESC's are programmable.


I use the Hobbywing Programming card to program them, to change start mode, brake mode, timing mode. ( when programming please remove any and all props.... for safety)


Specifications

A2212 1400KV 10T brushless outrunner motor
KV: 1400 10T
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

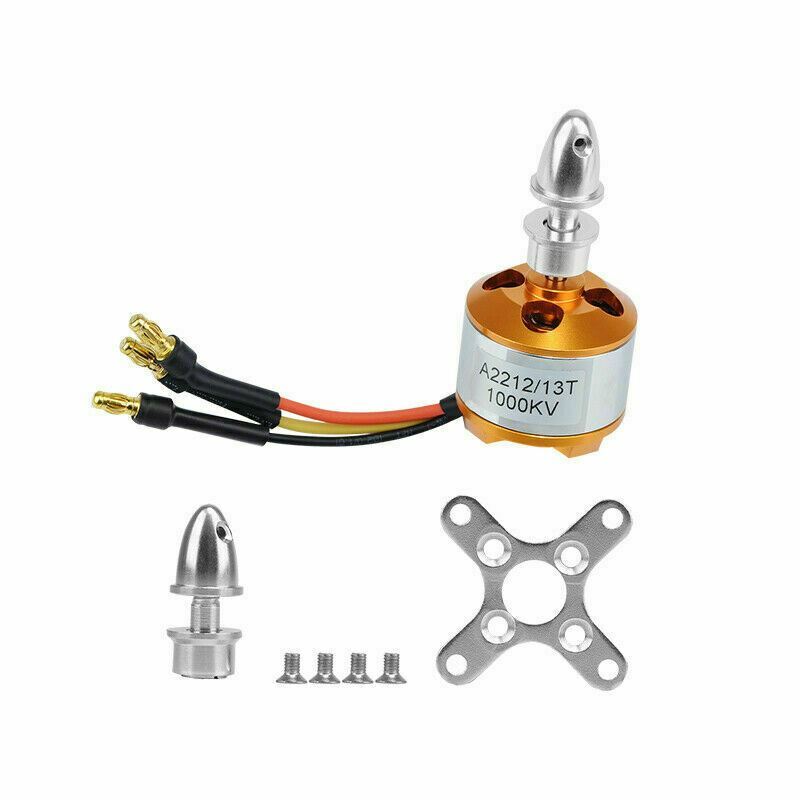

A2212 1000KV 13T brushless outrunner motor
KV: 1000 13T
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

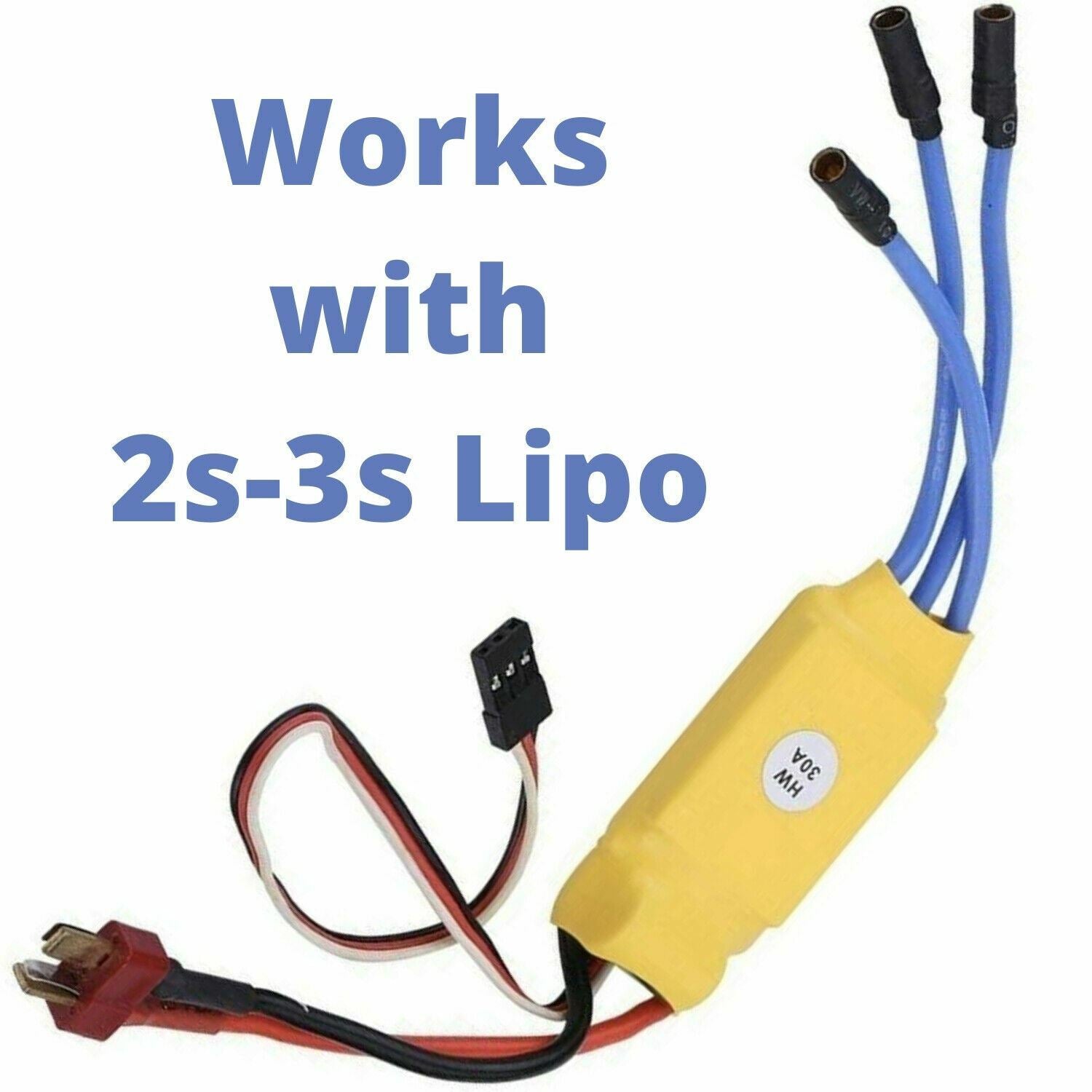

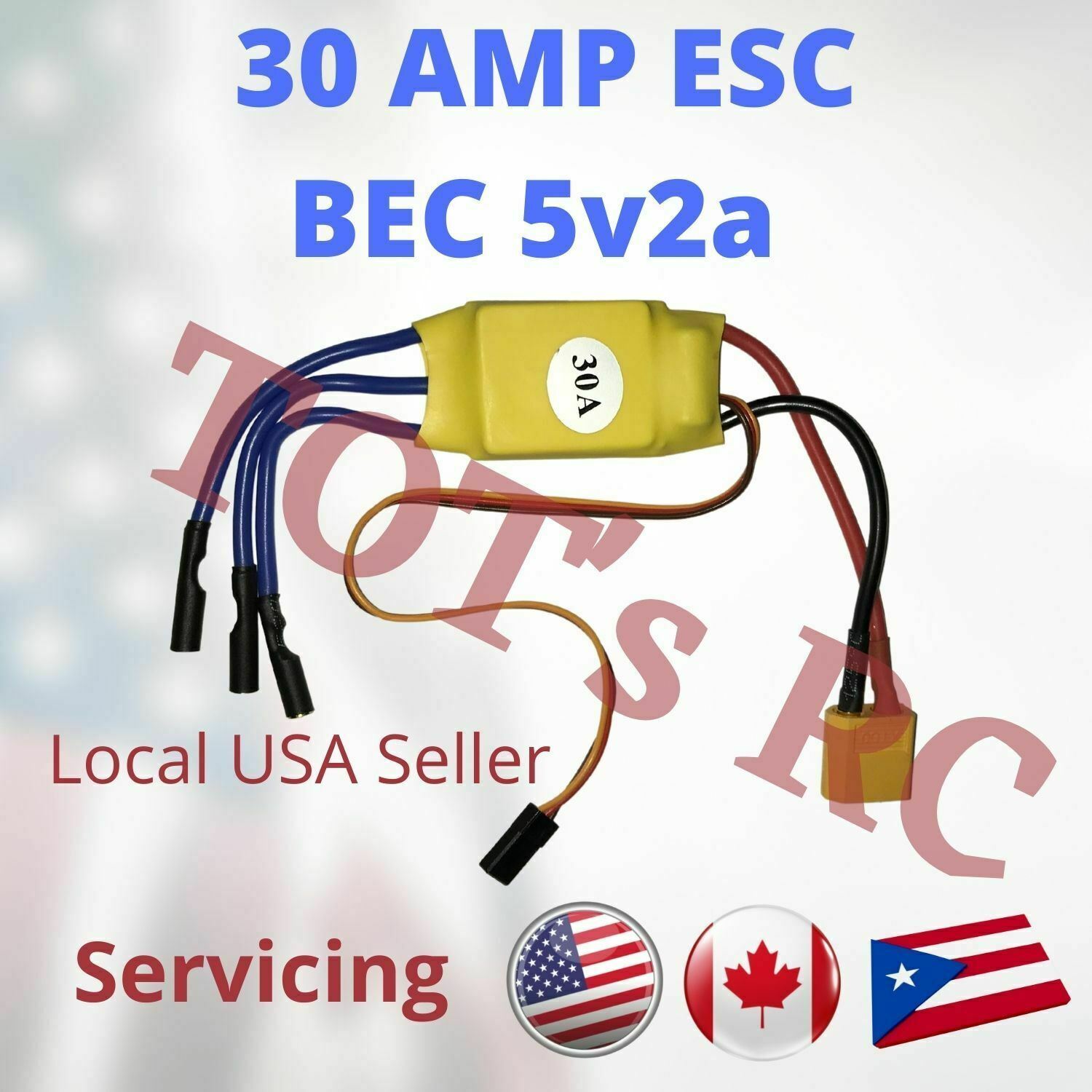

30 Amp Brushless ESC Specifications
Material: Plastic, Metal
Color: As Picture Shown
Weight: 34g
Size: approx. 55*25mm/2.2*1 inch
Type: RC Parts and Accessories
Firmware: HobbyWing
Power Input: 7-12.6V(2-3S Li-Poly, or 5-12S Ni-MH Ni-MH/Ni-Cd)
BEC: 2A
Continuous Current: 30A(40A for 10 seconds)
MG90s Metal Gear Servo
Can handle Voltage from 4.8v to 6.0vTorque @ 4.8V is 2.2kg/cmTorque @ 6v is 2.5kg/cm
Spline Count= 20
90° Degrees MG90S Metal Gear Servo
1. For Boat Car/ Plane/Helicopter Trex 450/ Gaui 450/ Gartt 450/ KDS 450/ HK450 ALZRC 450, Blade 300 and many more
2. Dimensions: 23 x 12.2 x 29mm/Robot
3. Weight:. 15g
4. Operating Speed : (4.8V no load): 0.11sec / 60 degrees
(6.0V no load): 0.10sec / 60 degrees
5. Stall Torque (4.8V): 2.2 kg/cm
6. Stall Torque (6.0V): 2.5 kg/cm
7. Temperature Range: - 30 to + 60 degree
8. Dead Band Width: 10us
9. Connector Wire Length 150mm
10. Interface Specifications: JR / FP General
11. Accessories: Multi-arm, fixing screws
12. Scope: Helicopters KT, fluttering, gliding, small robots,etc.
13. Recommend Model: Mini Car /Ship / Helicopter & Airplane/ Fixed Wing / FPV Drone

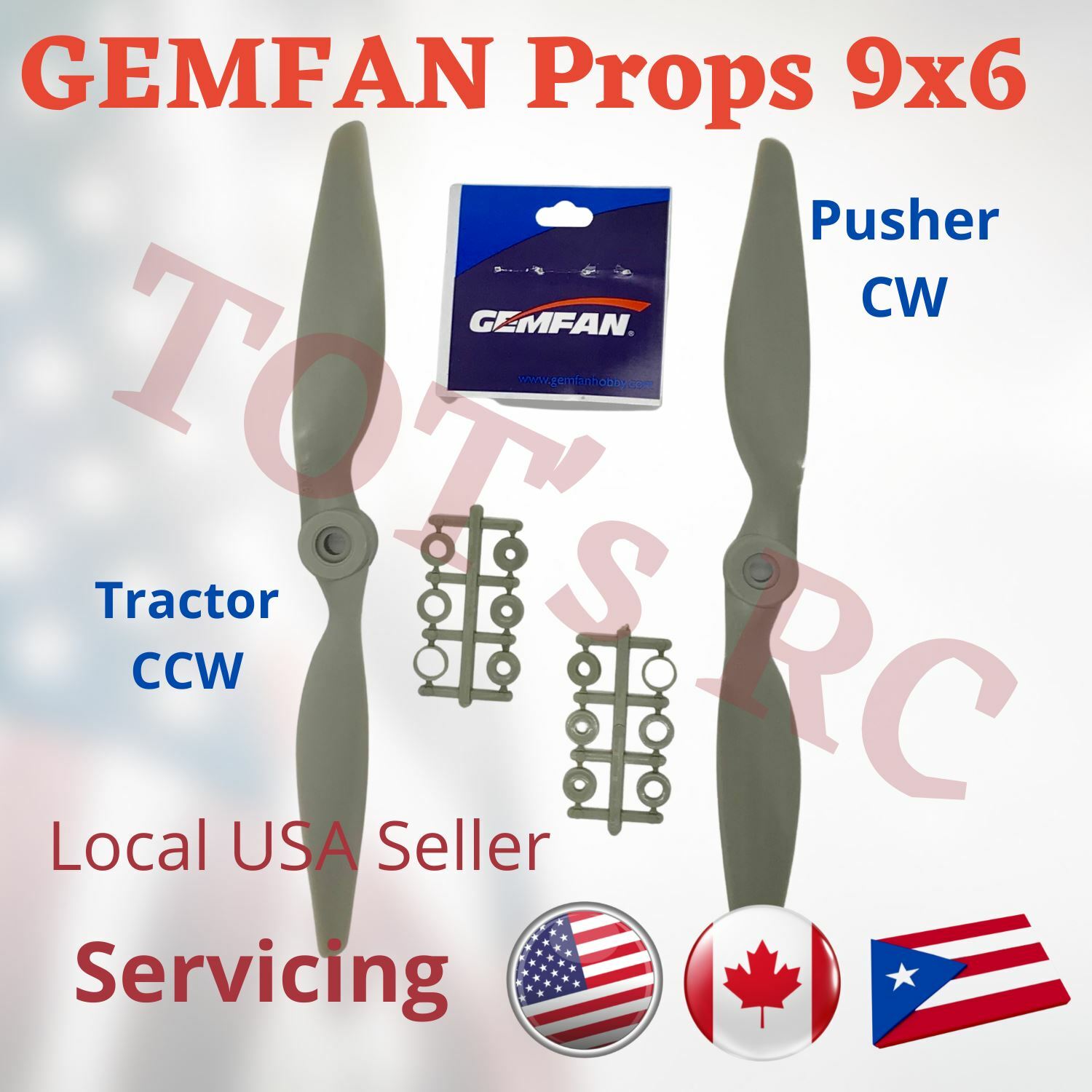

GEMFAN 9x6 Prop. 6mm apeture with 6 shaft adapters and weighs about 12 Grams
Thank you for shopping and supporting Local Family Business !!!!!
